Shop MOLEX

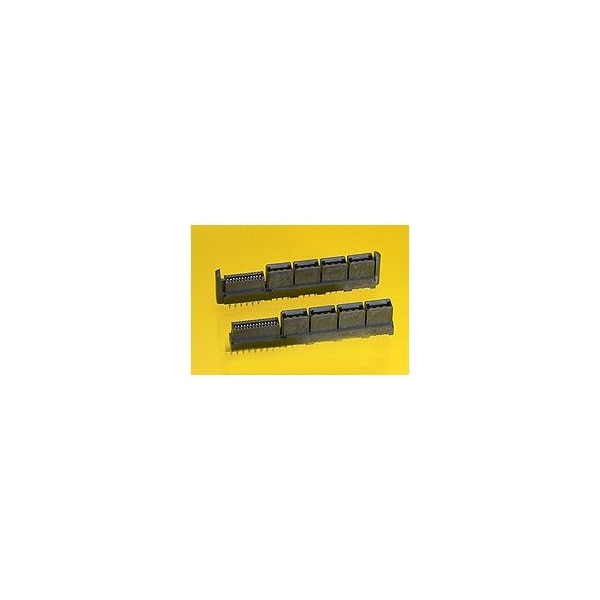

LPH VERT. ASSY NO GUIDES 10PX28S CKT

  • Mfr # 46114-1029

  • Zoro # G4039348

product price:  $12.35
/ea
Sold in multiples of 5 for $61.75

Key Features

Application
Board-to-Board, Power
Material - Metal
High Performance Alloy (HPA)
Durability (mating cycles max)
250
Circuits (Loaded)
38
Number of Rows
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
46114-1029
Zoro #
G4039348
UPC #
756054922835
Country of Origin
China

Details

Application
Board-to-Board, Power
Material - Metal
High Performance Alloy (HPA)
Durability (mating cycles max)
250
Circuits (Loaded)
38
Number of Rows
2
Material - Plating Termination
Tin
Temperature Range - Operating
-40° to +105°C
Plating min - Termination
2.540µm
Voltage - Maximum
250V AC (RMS)/DC
Material - Resin
High Temperature Thermoplastic
Current - Maximum per Contact
30.0A
Surface Mount Compatible (SMC)
Yes
Series
46114
Orientation
Vertical
Color - Resin
Black
Plating min - Mating
0.762µm
UL
E29179
Polarized to Mating Part
Yes
(p)ower-(s)ignal Configuration
10p - 28s
CSA
LR19880
Pitch - Mating Interface
1.27mm, 12.00mm
Product Name
EXTreme LPHPower
Pitch - Termination Interface
1.27mm, 2.50mm
Polarized to PCB
Yes
Flammability
94V-0
Material - Plating Mating
Gold
Circuits (maximum)
38
Termination Interface: Style
Through Hole - Compliant Pin
