  11. LPH VERT. ASSY NO GUIDES 10PX32S CKT

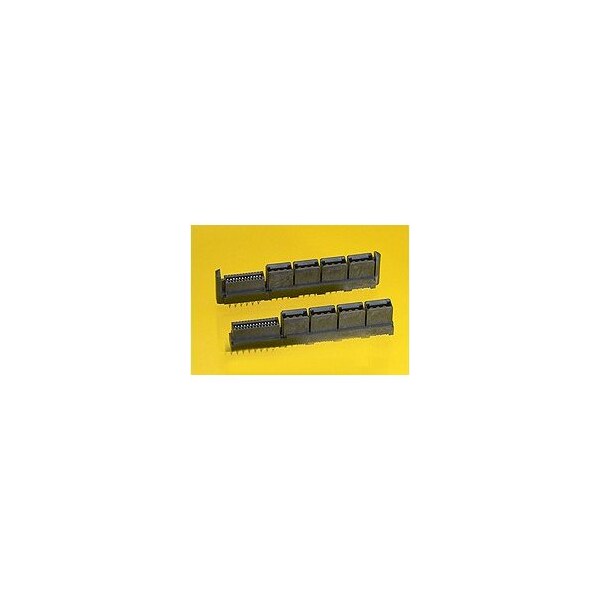

Molex LPH VERT. ASSY NO GUIDES 10PX32S CKT 46114-1033 - main

LPH VERT. ASSY NO GUIDES 10PX32S CKT

  • Mfr # 46114-1033

  • Zoro # G4040623

product price: $14.15
/ea
Sold in multiples of 5 for $70.75

Key Features

Application
Board-to-Board, Power
CSA
LR19880
Pitch - Mating Interface
1.27mm, 12.00mm
Temperature Range - Operating
-40° to +105°C
Circuits (maximum)
42
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
46114-1033
Zoro #
G4040623
UPC #
756054922842
Country of Origin
China

Details

Application
Board-to-Board, Power
CSA
LR19880
Pitch - Mating Interface
1.27mm, 12.00mm
Temperature Range - Operating
-40° to +105°C
Circuits (maximum)
42
Circuits (Loaded)
42
Polarized to PCB
Yes
Plating min - Mating
0.762µm
Series
46114
Material - Plating Mating
Gold
Surface Mount Compatible (SMC)
Yes
Polarized to Mating Part
Yes
Material - Plating Termination
Tin
Orientation
Vertical
Current - Maximum per Contact
30.0A
Color - Resin
Black
Flammability
94V-0
UL
E29179
Number of Rows
2
Material - Metal
High Performance Alloy (HPA)
Pitch - Termination Interface
1.27mm, 2.50mm
Voltage - Maximum
250V AC (RMS)/DC
Termination Interface: Style
Through Hole - Compliant Pin
Plating min - Termination
2.540µm
Durability (mating cycles max)
250
Product Name
EXTreme LPHPower
(p)ower-(s)ignal Configuration
10p - 32s
Material - Resin
High Temperature Thermoplastic

Description
