This item is Discontinued.

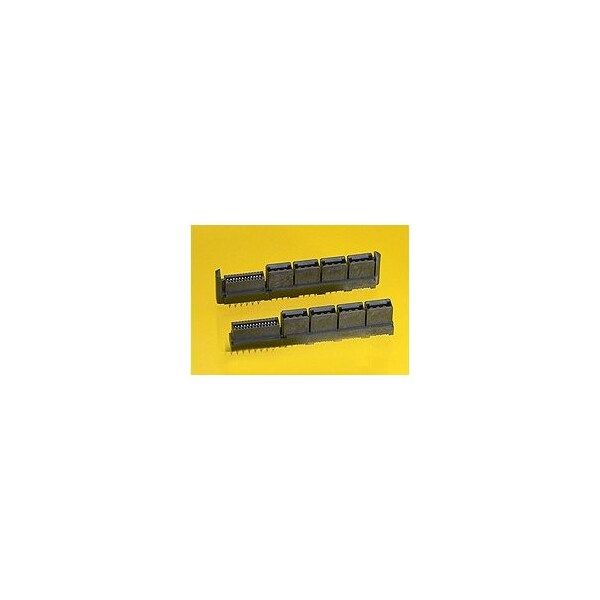

Molex LPH VERT. ASSY NO GUIDES 12PX24S CKT 46114-1225

LPH VERT. ASSY NO GUIDES 12PX24S CKT (Discontinued)

  • Mfr # 46114-1225
  • Zoro # G4042951
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
46114-1225
Zoro #
G4042951
UPC #
756054922903
Country of Origin
China

Details

Application
Board-to-Board, Power
Material - Resin
High Temperature Thermoplastic
Material - Plating Mating
Gold
Material - Plating Termination
Tin
Plating min - Mating
0.762µm
CSA
LR19880
Polarized to PCB
Yes
UL
E29179
Color - Resin
Black
Number of Rows
2
Flammability
94V-0
Surface Mount Compatible (SMC)
Yes
Current - Maximum per Contact
30.0A
Product Name
EXTreme LPHPower
Pitch - Termination Interface
1.27mm, 2.50mm
Temperature Range - Operating
-40° to +105°C
Polarized to Mating Part
Yes
Series
46114
(p)ower-(s)ignal Configuration
12p - 24s
Orientation
Vertical
Durability (mating cycles max)
250
Material - Metal
High Performance Alloy (HPA)
Circuits (Loaded)
36
Termination Interface: Style
Through Hole - Compliant Pin
Voltage - Maximum
250V AC (RMS)/DC
Circuits (maximum)
36
Plating min - Termination
2.540µm
Pitch - Mating Interface
1.27mm, 12.00mm
