This item is Discontinued.

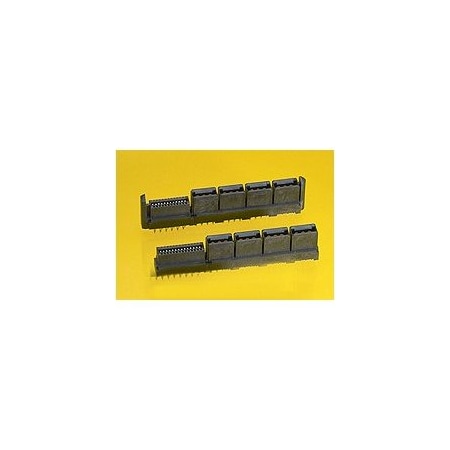

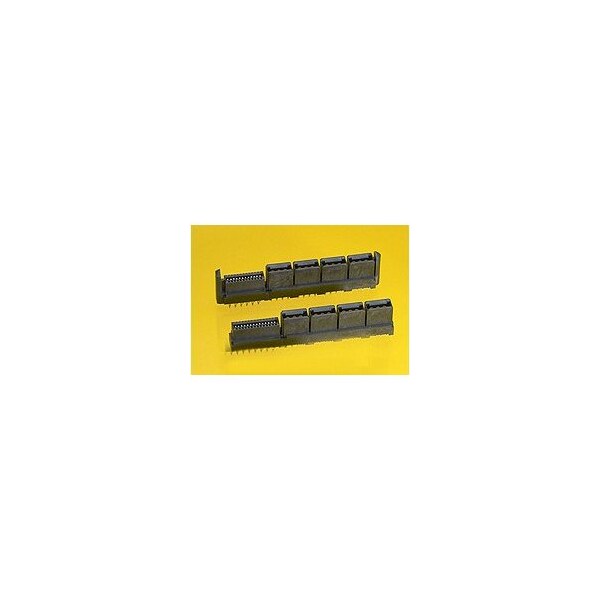

Molex LPH VERT. ASSY NO GUIDES 12PX40S CKT 46114-1241

LPH VERT. ASSY NO GUIDES 12PX40S CKT (Discontinued)

  • Mfr # 46114-1241
  • Zoro # G4043703
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
46114-1241
Zoro #
G4043703
UPC #
756054922941
Country of Origin
China

Details

Application
Board-to-Board, Power
Color - Resin
Black
Plating min - Mating
0.762µm
Temperature Range - Operating
-40° to +105°C
Polarized to Mating Part
Yes
Termination Interface: Style
Through Hole - Compliant Pin
Surface Mount Compatible (SMC)
Yes
CSA
LR19880
Circuits (maximum)
52
Circuits (Loaded)
52
(p)ower-(s)ignal Configuration
12p - 40s
Current - Maximum per Contact
30.0A
Pitch - Termination Interface
1.27mm, 2.50mm
Voltage - Maximum
250V AC (RMS)/DC
Orientation
Vertical
UL
E29179
Product Name
EXTreme LPHPower
Material - Plating Mating
Gold
Flammability
94V-0
Material - Metal
High Performance Alloy (HPA)
Polarized to PCB
Yes
Plating min - Termination
2.540µm
Material - Plating Termination
Tin
Material - Resin
High Temperature Thermoplastic
Durability (mating cycles max)
250
Pitch - Mating Interface
1.27mm, 12.00mm
Number of Rows
2
Series
46114
