This item is Discontinued.

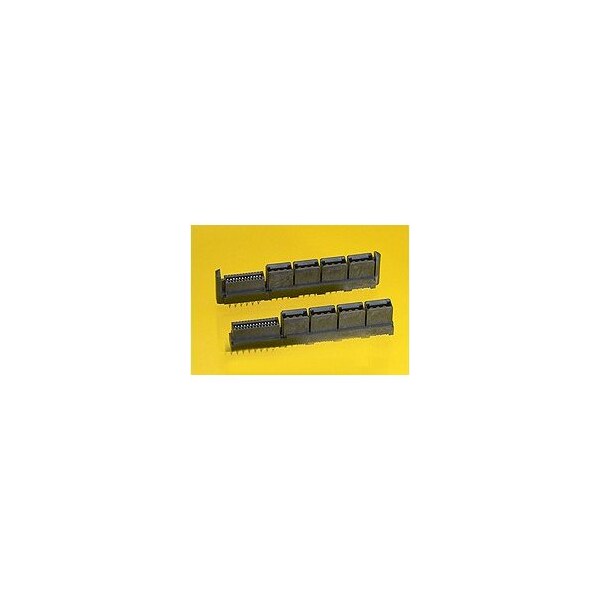

Molex LPH VERT. ASSY NO GUIDES 14PX24S CKT 46114-1425

LPH VERT. ASSY NO GUIDES 14PX24S CKT (Discontinued)

Mfr # 46114-1425
Zoro # G4039810

Get a 10% off coupon

Free 30-day returns

Get 30 days to pay with Net 30

Real support from real people

Specifications

Product Information

MFR #

46114-1425

Zoro #

G4039810

UPC #

756054922989

Country of Origin

China

Details

Application

Board-to-Board, Power

Surface Mount Compatible (SMC)

Yes

Orientation

Vertical

Circuits (maximum)

Product Name

EXTreme LPHPower

Polarized to Mating Part

Yes

Material - Metal

High Performance Alloy (HPA)

Series

46114

Flammability

94V-0

Plating min - Mating

0.762µm

Material - Plating Mating

Gold

CSA

LR19880

Color - Resin

Black

Termination Interface: Style

Through Hole - Compliant Pin

Current - Maximum per Contact

30.0A

Pitch - Mating Interface

1.27mm, 12.00mm

Pitch - Termination Interface

1.27mm, 2.50mm

Circuits (Loaded)

Polarized to PCB

Yes

Material - Plating Termination

Tin

E29179

(p)ower-(s)ignal Configuration

14p - 24s

Number of Rows

Temperature Range - Operating

-40° to +105°C

Durability (mating cycles max)

250

Plating min - Termination

2.540µm

Voltage - Maximum

250V AC (RMS)/DC

Material - Resin

High Temperature Thermoplastic

Description
