Shop MOLEX

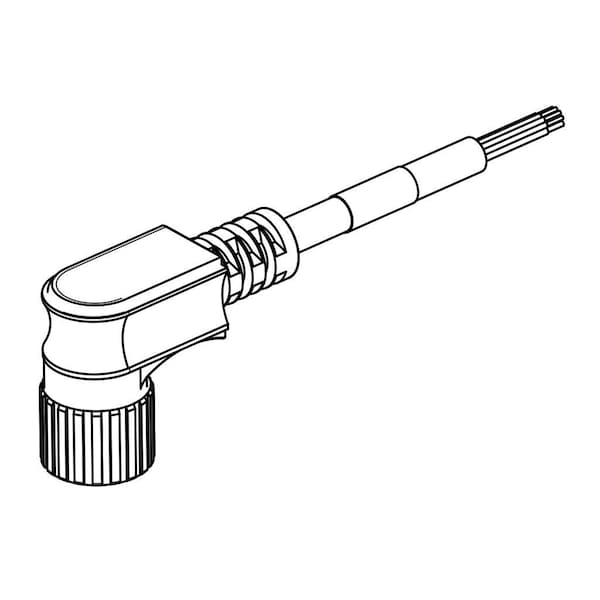

M23 12P 11W FE 90 10M WSOR

  • Mfr # 1200948150

  • Zoro # G2085523

product price:
$
162.99
/ea
Free Shipping & Returns

Key Features

Material - Plating Mating
Nickel
Gender
Female-Pigtail
Temperature Range - Operating
-25° to +90°C
Current - Maximum per Contact
6.0A
Voltage - Maximum
63V AC/DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1200948150
Zoro #
G2085523
UPC #
-
Country of Origin
Poland

Dimensions

Wire Size (AWG)
19, 22
Cable Diameter
8.50mm (.335")
Cable Length
10.0m (32.81')

Details

Material - Plating Mating
Nickel
Gender
Female-Pigtail
Temperature Range - Operating
-25° to +90°C
Current - Maximum per Contact
6.0A
Voltage - Maximum
63V AC/DC
Material - Coupling Nut
Nickel-plated Brass
Keyway
A-coded
Poles
12
Series
120094
Material - Cable Jacket
TPU
Wire/Cable Type
UL 21215
Connector End B
Pigtail
Orientation
90° to Pigtail
Product Name
Brad M23
Color - Cable Jacket
Black
Coupling Style
Threaded
Type
Single Ended
Material - Contact
Bronze
LED Indicator
No
Material - Connector Body
TPU
Connector End A
M23
IP Rating
IP67
