Shop MOLEX

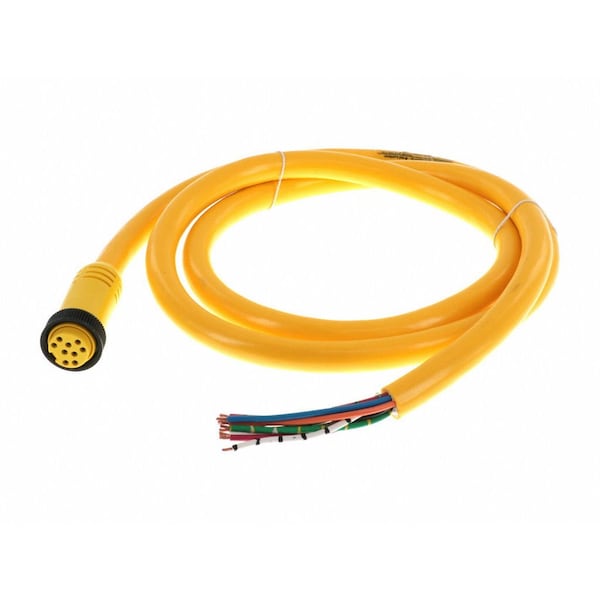

MC 9P FP 6 16/9 PVC

  • Mfr # 1300080325

  • Zoro # G2079573

product price:  $142.99
/ea
Free Shipping & Returns

Key Features

Poles
9
Temperature Range - Operating
-20°C to +105°C
Current - Maximum per Contact
7.0A
Voltage - Maximum
600V
Keyway
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1300080325
Zoro #
G2079573
UPC #
78678844129
Country of Origin
Mexico

Dimensions

Wire Size AWG
16
Cable Length
1.83m (6.0')
Cable Diameter
16.26mm (.640")

Details

Poles
9
Temperature Range - Operating
-20°C to +105°C
Current - Maximum per Contact
7.0A
Voltage - Maximum
600V
Keyway
Single
UL
E152210
Material - Plating Mating
Gold
Wire/Cable Type
STOOW
Material - Cable Jacket
PVC
Orientation
Straight to Pigtail
Color - Cable Jacket
Yellow
Coupling Style
Threaded
CSA
LR6837
Material - Coupling Nut
Black Epoxy Coated Zinc
Material - Connector Body
PVC
Gender
Female-Pigtail
Type
Single Ended
Connector End A
Mini-Change
Material - Contact
Brass
Series
130008
LED Indicator
No
Protocol
DeviceNet
Product Name
Mini-Change
IP Rating
IP67
Connector End B
Pigtail

Documents & Resources
