  6. Mega-Fit Female-To-Mega-Fit Female Off-The-Shelf (Ots) Cable Assembly, Single Row, 600.00Mm Length

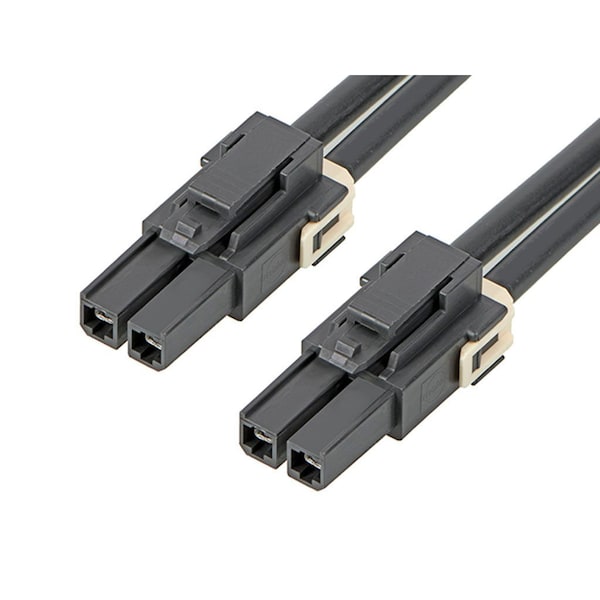

Molex Mega-Fit Female-To-Mega-Fit Female Off-The-Shelf (Ots) Cable Assembly, Single Row, 600.00Mm Length 2164001023 - main

Mega-Fit Female-To-Mega-Fit Female Off-The-Shelf (Ots) Cable Assembly, Single Row, 600.00Mm Length

  • Mfr # 2164001023

  • Zoro # G305925777

product price:  $8.19
/ea
Sold in multiples of 15 for $122.85

Key Features

Series
216400
Cable Length
600.00mm
Type
Discrete Wire Assembly, High-Power Assembly
Application
Power, Wire-to-Board, Wire-to-Wire
Pitch - Mating Interface
5.70mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
2164001023
Zoro #
G305925777
UPC #
-
Country of Origin
India

Dimensions

Cable Length
600.00mm
Wire Insulation Diameter
4.06mm max.
Wire Size AWG
12

Details

Series
216400
Type
Discrete Wire Assembly, High-Power Assembly
Application
Power, Wire-to-Board, Wire-to-Wire
Pitch - Mating Interface
5.70mm
Wire/Cable Type
UL 1015
Voltage - Maximum
600V AC (RMS)/DC
Number of Rows
1
Material - Resin
Nylon
Termination Interface: Style
Crimp or Compression
Current - Maximum per Contact
25.0A
Circuits (Loaded)
2
Material - Plating Termination
Tin
Lock to Mating Part
Yes
Material - Plating Mating
Tin
Gender
Female-Female
Material - Metal
High Conductivity Copper
Product Name
Mega-Fit
Connector to Connector
Mega-Fit-to-Mega-Fit
Single Ended
No
Assembly Configuration
Dual Ended Connectors
Color - Resin
Black
Overmolded
No
