  6. Mega-Fit Female-To-Pigtail Off-The-Shelf (Ots) Cable Assembly, Single Row, 150.00Mm Length, Tin

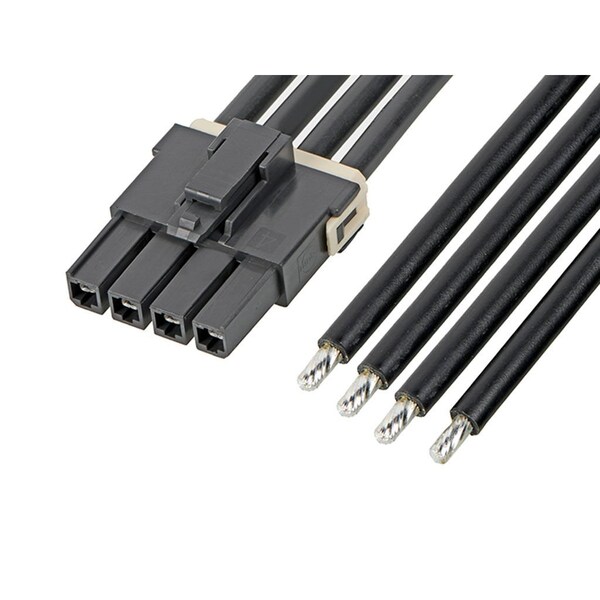

Molex Mega-Fit Female-To-Pigtail Off-The-Shelf (Ots) Cable Assembly, Single Row, 150.00Mm Length, Tin 2164011041 - main
Shop MOLEX

Mega-Fit Female-To-Pigtail Off-The-Shelf (Ots) Cable Assembly, Single Row, 150.00Mm Length, Tin

  • Mfr # 2164011041

  • Zoro # G905925856

product price:  $4.99
/ea
Sold in multiples of 15 for $74.85

Key Features

Cable Length
150.00mm
Series
216401
Application
Power, Wire-to-Board, Wire-to-Wire
Type
Discrete Wire Assembly, High-Power Assembly
Material - Metal
High Conductivity Copper
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
2164011041
Zoro #
G905925856
UPC #
-
Country of Origin
India

Dimensions

Cable Length
150.00mm
Wire Insulation Diameter
4.06mm max.
Wire Size AWG
12

Details

Series
216401
Application
Power, Wire-to-Board, Wire-to-Wire
Type
Discrete Wire Assembly, High-Power Assembly
Material - Metal
High Conductivity Copper
Material - Plating Mating
Tin
Wire/Cable Type
UL 1015
Single Ended
Yes
Material - Plating Termination
Tin
Pitch - Mating Interface
5.70mm
Lock to Mating Part
Yes
Number of Rows
1
Current - Maximum per Contact
25.0A
Gender
Female-Pigtail
Circuits (Loaded)
4
Termination Interface: Style
Crimp or Compression
Material - Resin
Nylon
Voltage - Maximum
600V AC (RMS)/DC
Connector to Connector
Mega-Fit-to-Pigtail
Product Name
Mega-Fit
Assembly Configuration
Single Ended Connector
Overmolded
No
Color - Resin
Black

Description

Mega-Fit Female-To-Pigtail Off-The-Shelf (Ots) Cable Assembly, Single Row, 150.00Mm Length, Tin Plated
