  9. Mega-Fit Vt Dr Th Hdr 30 Au 8Ckt

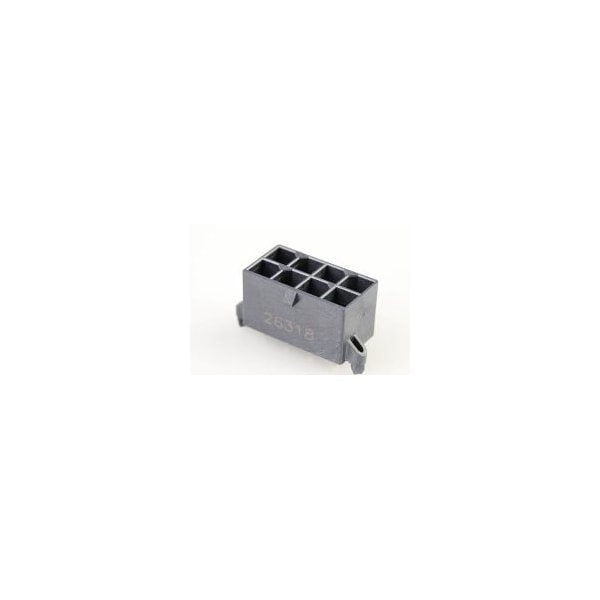

Molex Mega-Fit Vt Dr Th Hdr 30 Au 8Ckt 1720651008 - main

Mega-Fit Vt Dr Th Hdr 30 Au 8Ckt

  • Mfr # 1720651008

  • Zoro # G105910096

product price: $9.35
/ea
Sold in multiples of 720 for $6,732.00

Key Features

Color
Black
Number of Rows
2
Series
172065
Max. Voltage
600V AC/DC
Application
Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1720651008
Zoro #
G105910096
UPC #
-
Country of Origin
China

Dimensions

Contact Plating Thickness
0.762 µm
PC Tail Length
3.73mm
Mated Height
16.78mm
Unmated Height
14.80mm
PCB Thickness - Recommended
1.58mm, 2.36mm

Details

Color
Black
Number of Rows
2
Series
172065
Max. Voltage
600V AC/DC
Application
Power, Wire-to-Board
Material
Liquid Crystal Polymer
Hole Center to Center
5.7 mm
Terminal Type
Through Hole
Features
Glow-Wire Capable; Surface Mount Compatible
Max. Temp.
260°C
Standards
CSA Certified; UL E29179
Terminal Finish
Matte Tin Plated
Current Rating
23.5 A
Flammability Rating
UL 94V-0
Contact Finish
Gold Plated
Number of Contacts
8
Current - Maximum per Contact
23.5A
Polarized to Mating Part
Yes
Lock to Mating Part
Yes
Plating min - Mating
0.762µm
Material - Resin
Liquid Crystal Polymer
First Mate / Last Break
No
Flammability
94V-0
Orientation
Vertical
Circuits (Loaded)
8
Breakaway
No
Durability (mating cycles max)
200
Material - Plating Termination
Matte Tin
Component Type
PCB Header
Product Name
Mega-Fit
Keying to Mating Part
Yes
Max-Duration
30
UL
E29179
CSA
LR19980
Temperature Range - Operating
-40° to +120°C
Voltage - Maximum
600V AC (RMS)/DC
Max-Cycle
1
Max-Temp
260
Material - Plating Mating
Gold
Pitch - Mating Interface
5.70mm
Polarized to PCB
Yes
Material - Metal
High Conductivity Copper
PCB Locator
Yes
Glow-Wire Capable
Yes
Shrouded
Yes
PCB Retention
Yes
