  9. Megafit Slim Vert Hdr Assy 10 Ckt 30 Au

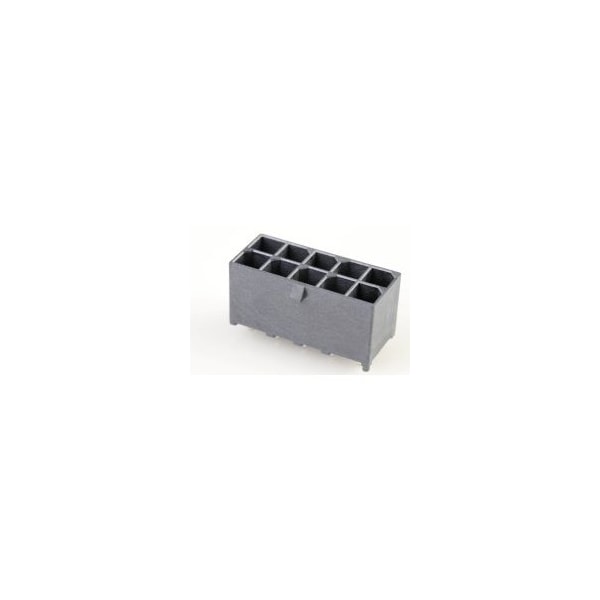

Molex Megafit Slim Vert Hdr Assy 10 Ckt 30 Au 1720650310 - main

Megafit Slim Vert Hdr Assy 10 Ckt 30 Au

  • Mfr # 1720650310

  • Zoro # G305910155

product price: $10.39
/ea
Sold in multiples of 10 for $103.90

Key Features

Color
Black
Number of Rows
2
Series
172065
Max. Voltage
600V AC/DC
Application
Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1720650310
Zoro #
G305910155
UPC #
-
Country of Origin
China

Dimensions

Contact Plating Thickness
0.762 µm
Unmated Height
14.80mm
Mated Height
16.78mm
PC Tail Length
3.73mm
PCB Thickness - Recommended
1.58mm

Details

Color
Black
Number of Rows
2
Series
172065
Max. Voltage
600V AC/DC
Application
Power, Wire-to-Board
Hole Center to Center
5.7 mm
Material
Liquid Crystal Polymer
Terminal Type
Through Hole
Features
Glow-Wire Capable; Surface Mount Compatible
Max. Temp.
120°C
Current Rating
23.5 A
Number of Contacts
10
Terminal Finish
Matte Tin Plated
Contact Finish
Gold Plated
PCB Locator
Yes
Durability (mating cycles max)
200
UL
E29179
Material - Resin
Liquid Crystal Polymer
Shrouded
Yes
Material - Plating Termination
Matte Tin
Polarized to Mating Part
Yes
Pitch - Mating Interface
5.70mm
Keying to Mating Part
Yes
PCB Retention
Yes
Glow-Wire Capable
Yes
Lock to Mating Part
Yes
Orientation
Vertical
Breakaway
No
Circuits (Loaded)
10
Current - Maximum per Contact
23.5A
Voltage - Maximum
600V AC (RMS)/DC
Material - Metal
High Conductivity Copper
Product Name
Mega-Fit
Temperature Range - Operating
-40° to +120°C
Plating min - Mating
0.762µm
Flammability
94V-0
Material - Plating Mating
Gold
Component Type
PCB Header
Polarized to PCB
Yes
First Mate / Last Break
No
