This item is Discontinued.

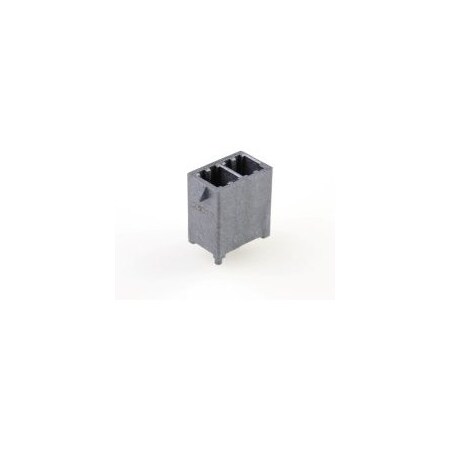

Molex Megafit Slim Vert Hdr Assy 2 Ckt 15Au 1720650202

Megafit Slim Vert Hdr Assy 2 Ckt 15Au (Discontinued)

  • Mfr # 1720650202
  • Zoro # G005909930
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1720650202
Zoro #
G005909930
UPC #
-
Country of Origin
China

Dimensions

Contact Plating Thickness
0.381 µm
Mated Height
16.78mm
PC Tail Length
3.73mm
Unmated Height
14.80mm
PCB Thickness - Recommended
1.58mm

Details

Color
Black
Number of Rows
2
Series
172065
Max. Voltage
600V AC/DC
Application
Power, Wire-to-Board
Hole Center to Center
5.7 mm
Terminal Type
Through Hole
Max. Temp.
120°C
Material
Liquid Crystal Polymer
Features
Glow-Wire Capable; Surface Mount Compatible
Number of Contacts
2
Current Rating
23.5 A
Terminal Finish
Matte Tin Plated
Contact Finish
Gold Plated
Circuits (Loaded)
2
Polarized to Mating Part
Yes
Component Type
PCB Header
Durability (mating cycles max)
200
Pitch - Mating Interface
5.70mm
PCB Locator
Yes
Keying to Mating Part
Yes
Breakaway
No
Flammability
94V-0
Voltage - Maximum
600V AC (RMS)/DC
Material - Plating Termination
Matte Tin
Temperature Range - Operating
-40° to +120°C
Orientation
Vertical
Plating min - Mating
0.381µm
Material - Plating Mating
Gold
Product Name
Mega-Fit
Glow-Wire Capable
Yes
Lock to Mating Part
Yes
Current - Maximum per Contact
23.5A
Polarized to PCB
Yes
Material - Metal
High Conductivity Copper
Material - Resin
Liquid Crystal Polymer
UL
E29179
PCB Retention
Yes
Shrouded
Yes
First Mate / Last Break
No
