  9. Megafit Slim Vert Hdr Assy 8 Ckt Tin

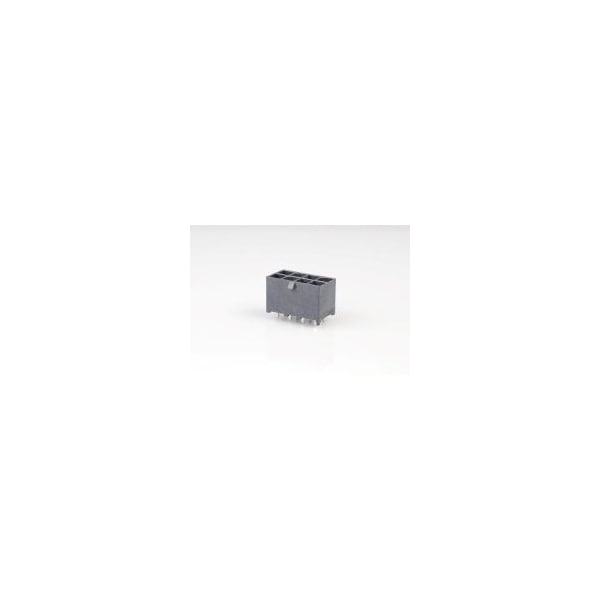

Molex Megafit Slim Vert Hdr Assy 8 Ckt Tin 768290108 - main

Megafit Slim Vert Hdr Assy 8 Ckt Tin

  • Mfr # 768290108

  • Zoro # G905911699

product price: $2.49
/ea
Sold in multiples of 35 for $87.15

Key Features

Color
Black
Number of Rows
2
Series
76829
Max. Voltage
600V AC/DC
Application
Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
768290108
Zoro #
G905911699
UPC #
-
Country of Origin
China

Dimensions

Contact Plating Thickness
1.524 µm
Unmated Height
14.80mm
Mated Height
16.78mm
PC Tail Length
3.73mm
PCB Thickness - Recommended
1.58mm

Details

Color
Black
Number of Rows
2
Series
76829
Max. Voltage
600V AC/DC
Application
Power, Wire-to-Board
Max. Temp.
105°C
Terminal Type
Through Hole
Material
Liquid Crystal Polymer
Features
Glow-Wire Capable; Surface Mount Compatible
Hole Center to Center
5.7 mm
Number of Contacts
8
Contact Finish
Matte Tin Plated
Current Rating
23.5 A
Terminal Finish
Matte Tin Plated
Plating min - Mating
1.524µm
Breakaway
No
Component Type
PCB Header
PCB Locator
Yes
Keying to Mating Part
Yes
Lock to Mating Part
Yes
PCB Retention
Yes
Material - Plating Termination
Matte Tin
Durability (mating cycles max)
25
Circuits (Loaded)
8
Orientation
Vertical
Product Name
Mega-Fit
First Mate / Last Break
No
Glow-Wire Capable
Yes
Temperature Range - Operating
-40° to +105°C
Polarized to Mating Part
Yes
UL
E29179
Polarized to PCB
Yes
Material - Plating Mating
Matte Tin
Shrouded
Yes
Voltage - Maximum
600V AC (RMS)/DC
Pitch - Mating Interface
5.70mm
Current - Maximum per Contact
23.5A
Material - Resin
Liquid Crystal Polymer
Flammability
94V-0
Material - Metal
High Conductivity Copper
