  9. Mf+ Hcs Vert Hdr Dr 14Ckt V-0 Dh Peg Gld

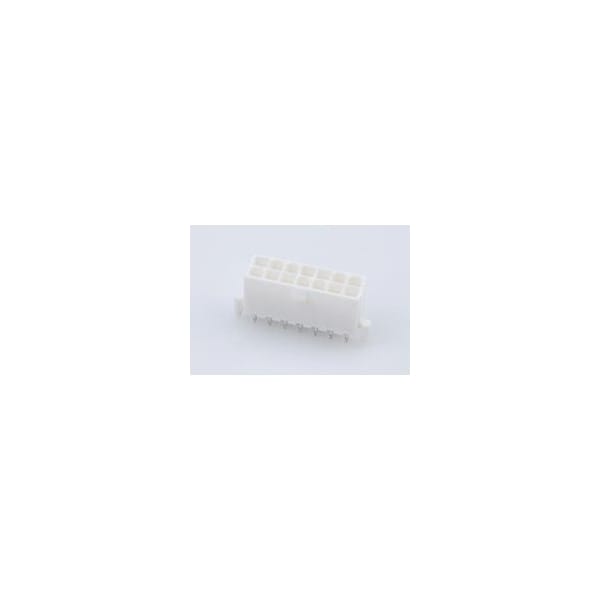

Molex Mf+ Hcs Vert Hdr Dr 14Ckt V-0 Dh Peg Gld 460151409 - main

Mf+ Hcs Vert Hdr Dr 14Ckt V-0 Dh Peg Gld

  • Mfr # 460151409

  • Zoro # G105910607

product price: $5.85
/ea
Sold in multiples of 15 for $87.75

Key Features

Number of Rows
2
Max. Voltage
600V
Material
Nylon
Color
Natural
Series
46015
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
460151409
Zoro #
G105910607
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.762 µm
PC Tail Length
1.80mm
PCB Thickness - Recommended
1.78mm

Details

Number of Rows
2
Max. Voltage
600V
Material
Nylon
Color
Natural
Series
46015
Max. Temp.
240°C
Standards
CSA Certified; UL E29179
Application
Power, Wire-to-Board
Terminal Type
Through Hole
Hole Center to Center
4.2 mm
Flammability Rating
UL 94V-0
Current Rating
13 A
Terminal Finish
Tin Plated
Number of Contacts
14
Contact Finish
Gold Plated
Glow-Wire Capable
No
Durability (mating cycles max)
100
Material - Metal
Copper Alloy
Max-Temp
240
Polarized to PCB
Yes
Lock to Mating Part
Yes
PCB Locator
Yes
First Mate / Last Break
No
Shrouded
Fully
Material - Plating Mating
Gold
CSA
LR19980
Circuits (Loaded)
14
Plating min - Mating
0.762µm
Breakaway
No
Guide to Mating Part
No
PCB Retention
Yes
Max-Duration
5
Material - Resin
Nylon
Flammability
94V-0
Product Name
Mini-Fit Plus
Stackable
No
Pitch - Mating Interface
4.20mm
Current - Maximum per Contact
13.0A
Orientation
Vertical
Material - Plating Termination
Tin
UL
E29179
Polarized to Mating Part
Yes
Keying to Mating Part
None
Temperature Range - Operating
-40° to +105°C
Max-Cycle
1
Component Type
PCB Header
