  9. MF SMC Vert Hdr w/.063 Clip Tin 14Ckt
This item is Discontinued.

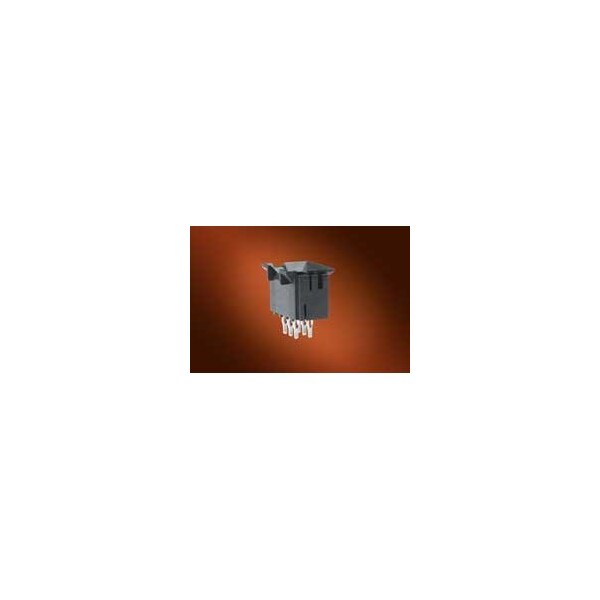

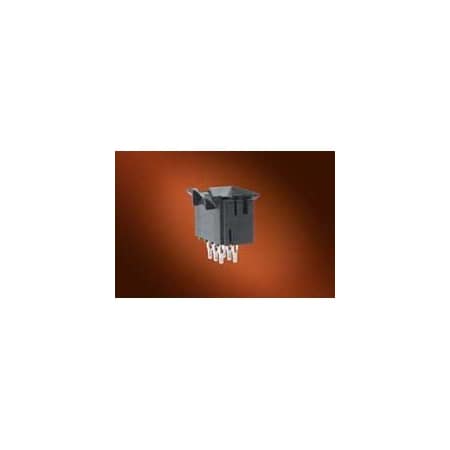

Molex MF SMC Vert Hdr w/.063 Clip Tin 14Ckt 44068-0006

MF SMC Vert Hdr w/.063 Clip Tin 14Ckt (Discontinued)

  • Mfr # 44068-0006
  • Zoro # G2760658
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
44068-0006
Zoro #
G2760658
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.60mm
PC Tail Length
3.30mm

Details

PCB Locator
Yes
Pitch - Mating Interface
4.20mm
Material - Plating Mating
Tin
Pitch - Termination Interface
4.20mm
Material - Metal
Brass
Material - Plating Termination
Tin
Circuits (Loaded)
14
Temperature Range - Operating
-40° to +105°C
CSA
LR19980
Max. Cycles at Max. Process Temperature
1
Color - Resin
Black
Process Temperature max. C
240
Durability (mating cycles max)
30
Plating min - Mating
2.540µm
Voltage - Maximum
600V
Number of Rows
2
Material - Resin
High Temperature Thermoplastic
Circuits (maximum)
14
Orientation
Vertical
UL
E29179
Surface Mount Compatible (SMC)
Yes
Shrouded
Partial
Flammability
94V-0
Current - Maximum per Contact
13.0A
Polarized to PCB
Yes
Termination Interface: Style
Through Hole
Duration at Max. Process Temperature (seconds)
5
PCB Retention
Yes
Plating min - Termination
2.540µm
