  9. MF SMC Vert Hdr w/.094 Clip 30UAu 14Ckt
This item is Discontinued.

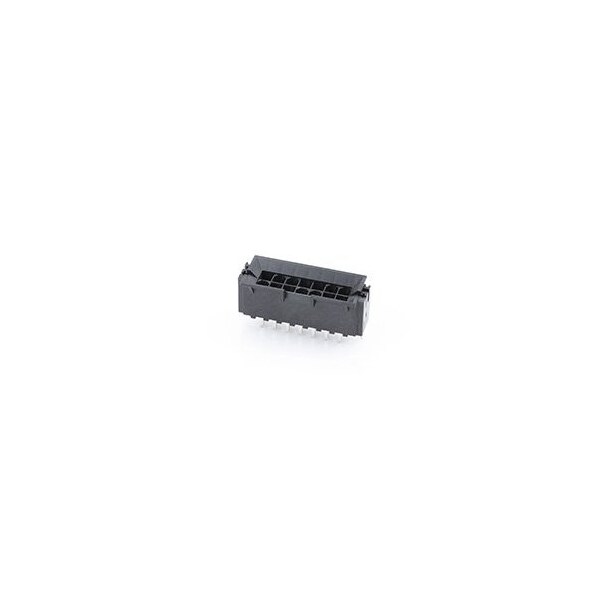

Molex MF SMC Vert Hdr w/.094 Clip 30UAu 14Ckt 44068-0061

MF SMC Vert Hdr w/.094 Clip 30UAu 14Ckt (Discontinued)

  • Mfr # 44068-0061
  • Zoro # G4050520
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
44068-0061
Zoro #
G4050520
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
2.40mm
PC Tail Length
4.42mm

Details

Pitch - Mating Interface
4.20mm
Flammability
94V-0
Polarized to PCB
Yes
Surface Mount Compatible (SMC)
Yes
Duration at Max. Process Temperature (seconds)
5
Material - Metal
Brass
Process Temperature max. C
260
Material - Plating Termination
Gold
Material - Plating Mating
Gold
Shrouded
Partial
Plating min - Termination
0.762µm
Circuits (maximum)
14
Orientation
Vertical
Voltage - Maximum
600V
Plating min - Mating
0.762µm
Current - Maximum per Contact
13.0A
Termination Interface: Style
Through Hole
Circuits (Loaded)
14
CSA
LR19980
Pitch - Termination Interface
4.20mm
PCB Retention
Yes
Color - Resin
Black
Material - Resin
High Temperature Thermoplastic
Number of Rows
2
Max. Cycles at Max. Process Temperature
1
PCB Locator
Yes
Durability (mating cycles max)
30
UL
E29179
Temperature Range - Operating
-40° to +105°C
