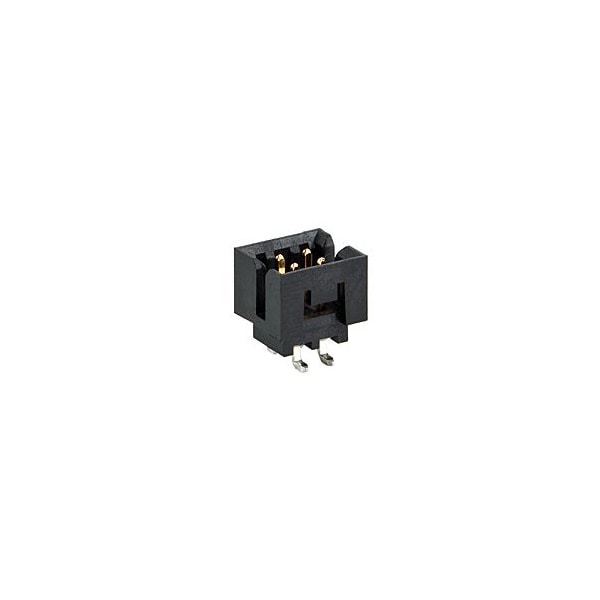

Molex MGrid Hdr Shrd SMT /Cap T&R .38AuLF 8Ckt 87832-5322 - main

MGrid Hdr Shrd SMT /Cap T&R .38AuLF 8Ckt

  • Mfr # 87832-5322

  • Zoro # G4028933

product price: $2.39
/ea
Sold in multiples of 500 for $1,195.00

Key Features

Pitch - Mating Interface
2.00mm
Plating min - Termination
1.905µm
UL
E29179
Keying to Mating Part
Yes
Plating min - Mating
0.381µm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
87832-5322
Zoro #
G4028933
UPC #
-
Country of Origin
Malaysia

Details

Pitch - Mating Interface
2.00mm
Plating min - Termination
1.905µm
UL
E29179
Keying to Mating Part
Yes
Plating min - Mating
0.381µm
Material - Resin
Nylon
Flammability
94V-0
Temperature Range - Operating
-55° to +105°C
Color - Resin
Black
Material - Plating Mating
Gold
Shrouded
Fully
Orientation
Vertical
Lock to Mating Part
Yes
CSA
LR19980
Duration at Max. Process Temperature (seconds)
10
Robotic Placement
Pick and Place Cap
Circuits (maximum)
8
Process Temperature max. C
260
Current - Maximum per Contact
2.0A
Termination Interface: Style
Surface Mount
Max. Cycles at Max. Process Temperature
1
Durability (mating cycles max)
100
Number of Rows
2
Voltage - Maximum
125V
Material - Plating Termination
Tin
Pitch - Termination Interface
2.00mm
Material - Metal
Phosphor Bronze
Surface Mount Compatible (SMC)
Yes
Circuits (Loaded)
8
