  11. MGrid Hdr Shrd SMT/Cap T&R .38AuLF 8Ckt
This item is Discontinued.

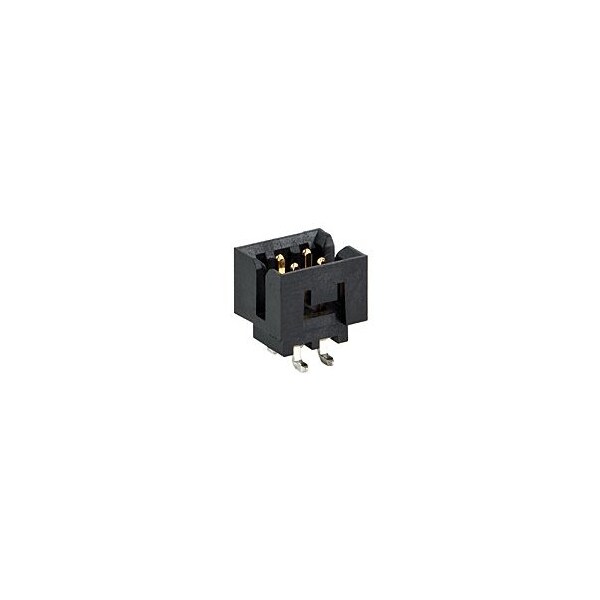

Molex MGrid Hdr Shrd SMT/Cap T&R .38AuLF 8Ckt 87832-0806

MGrid Hdr Shrd SMT/Cap T&R .38AuLF 8Ckt (Discontinued)

  • Mfr # 87832-0806
  • Zoro # G7920988
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
87832-0806
Zoro #
G7920988
UPC #
-
Country of Origin
Unknown

Details

Material - Metal
Phosphor Bronze
Plating min - Termination
1.905µm
Termination Interface: Style
Surface Mount
Surface Mount Compatible (SMC)
Yes
Shrouded
Fully
Orientation
Vertical
Material - Plating Mating
Gold
Duration at Max. Process Temperature (seconds)
10
Voltage - Maximum
125V
Number of Rows
2
CSA
LR19980
Material - Resin
Nylon
Circuits (maximum)
8
Max. Cycles at Max. Process Temperature
1
Plating min - Mating
0.381µm
Color - Resin
Black
Keying to Mating Part
Yes
Circuits (Loaded)
8
Durability (mating cycles max)
100
Current - Maximum per Contact
2.0A
Material - Plating Termination
Tin
Temperature Range - Operating
-55° to +105°C
Lock to Mating Part
Yes
Pitch - Termination Interface
2.00mm
Process Temperature max. C
260
UL
E29179
Flammability
94V-0
Pitch - Mating Interface
2.00mm
