  11. MGrid Hdr Shrd SMT/Lck/Stdf .76AuLF 8Ckt

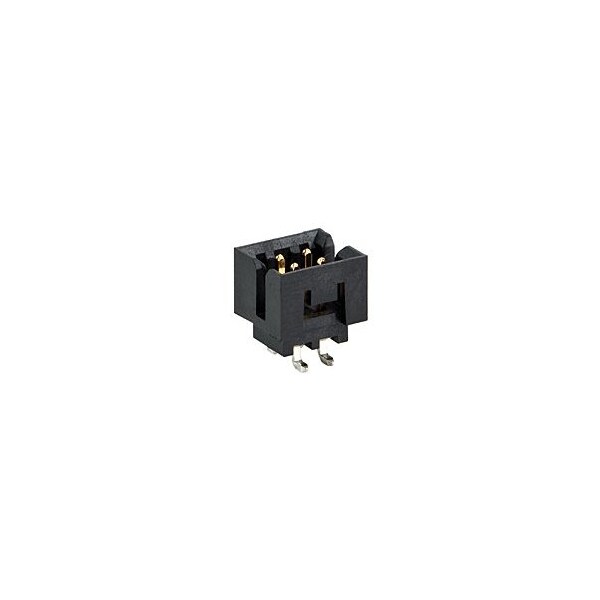

Molex MGrid Hdr Shrd SMT/Lck/Stdf .76AuLF 8Ckt 87832-0811 - main

MGrid Hdr Shrd SMT/Lck/Stdf .76AuLF 8Ckt

  • Mfr # 87832-0811

  • Zoro # G4041402

product price: $1.99
/ea
Sold in multiples of 4000 for $7,960.00

Key Features

Termination Interface: Style
Surface Mount
Temperature Range - Operating
-55° to +105°C
Current - Maximum per Contact
2.0A
Material - Plating Mating
Gold
Voltage - Maximum
125V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
87832-0811
Zoro #
G4041402
UPC #
-
Country of Origin
Malaysia

Details

Termination Interface: Style
Surface Mount
Temperature Range - Operating
-55° to +105°C
Current - Maximum per Contact
2.0A
Material - Plating Mating
Gold
Voltage - Maximum
125V
Max. Cycles at Max. Process Temperature
1
Circuits (Loaded)
8
Pitch - Mating Interface
2.00mm
Pitch - Termination Interface
2.00mm
Plating min - Mating
0.762µm
Material - Metal
Phosphor Bronze
CSA
LR19980
Duration at Max. Process Temperature (seconds)
10
Surface Mount Compatible (SMC)
Yes
Number of Rows
2
Plating min - Termination
1.905µm
Shrouded
Fully
UL
E29179
Flammability
94V-0
Orientation
Vertical
Material - Resin
Nylon
Color - Resin
Black
Process Temperature max. C
260
Lock to Mating Part
Yes
Material - Plating Termination
Tin
Durability (mating cycles max)
100
Circuits (maximum)
8
Keying to Mating Part
Yes
