This item is Discontinued.

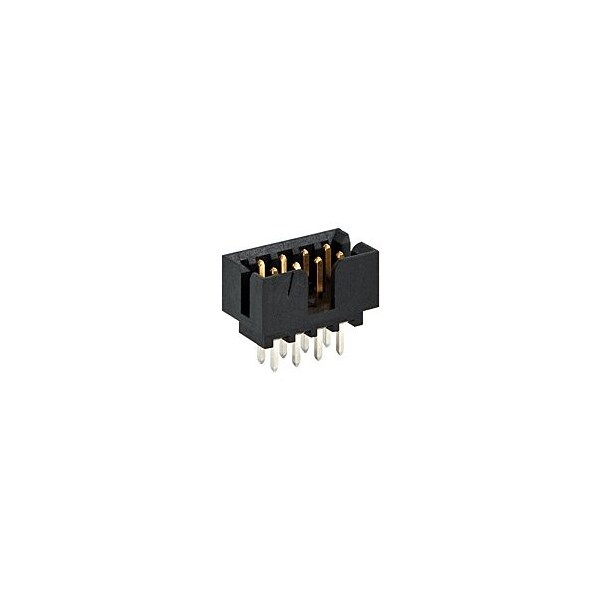

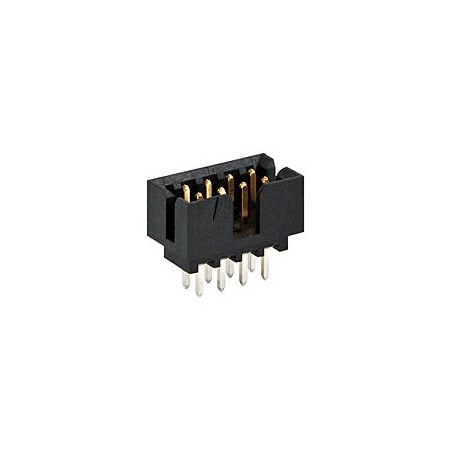

Molex MGrid Hdr Shrd Vt W/Lck .76AuLF 6Ckt 87831-0642

MGrid Hdr Shrd Vt W/Lck .76AuLF 6Ckt (Discontinued)

  • Mfr # 87831-0642
  • Zoro # G2753244
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
87831-0642
Zoro #
G2753244
UPC #
-
Country of Origin
Malaysia

Dimensions

PC Tail Length
2.50mm
PCB Thickness - Recommended
1.60mm

Details

Flammability
94V-0
Lock to Mating Part
Yes
Circuits (maximum)
6
Material - Plating Termination
Tin
Temperature Range - Operating
-55° to +105°C
Process Temperature max. C
260
Circuits (Loaded)
6
Material - Resin
Nylon
Shrouded
Yes
Current - Maximum per Contact
2.0A
Plating min - Mating
0.762µm
UL
E29179
Material - Metal
Phosphor Bronze
Max. Cycles at Max. Process Temperature
1
Plating min - Termination
1.905µm
CSA
LR19980
Number of Rows
2
Color - Resin
Black
Duration at Max. Process Temperature (seconds)
10
Material - Plating Mating
Gold
Orientation
Vertical
Durability (mating cycles max)
100
Voltage - Maximum
125V
Surface Mount Compatible (SMC)
Yes
Pitch - Termination Interface
2.00mm
Termination Interface: Style
Through Hole
Pitch - Mating Interface
2.00mm
