This item is Discontinued.

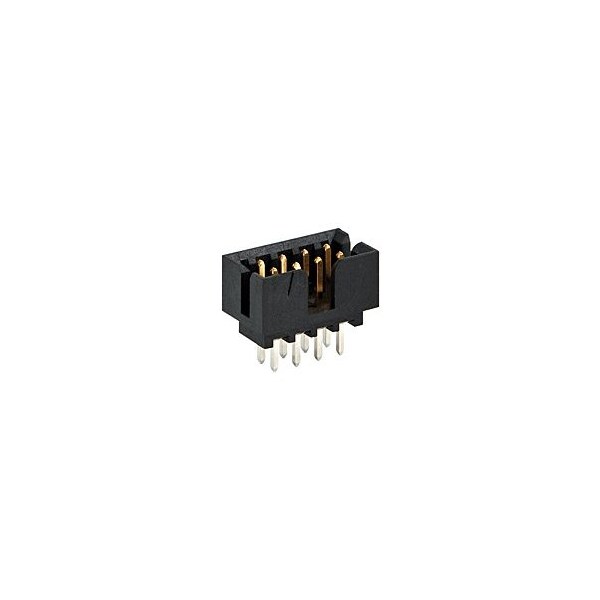

Molex MGrid Hdr Shrd Vt W/Stdf .38AuLF 6Ckt 87831-0620

MGrid Hdr Shrd Vt W/Stdf .38AuLF 6Ckt (Discontinued)

  • Mfr # 87831-0620
  • Zoro # G2748511
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
87831-0620
Zoro #
G2748511
UPC #
-
Country of Origin
Malaysia

Dimensions

PC Tail Length
2.50mm
PCB Thickness - Recommended
1.60mm

Details

Material - Plating Termination
Tin
Number of Rows
2
Durability (mating cycles max)
100
Circuits (Loaded)
6
Material - Metal
Phosphor Bronze
Lock to Mating Part
Yes
Pitch - Mating Interface
2.00mm
Plating min - Termination
1.905µm
Circuits (maximum)
6
Shrouded
Yes
Orientation
Vertical
Current - Maximum per Contact
2.0A
Termination Interface: Style
Through Hole
Color - Resin
Black
Duration at Max. Process Temperature (seconds)
10
Pitch - Termination Interface
2.00mm
Max. Cycles at Max. Process Temperature
1
UL
E29179
Temperature Range - Operating
-55° to +105°C
Flammability
94V-0
Material - Resin
Nylon
Plating min - Mating
0.381µm
CSA
LR19980
Process Temperature max. C
260
Material - Plating Mating
Gold
Voltage - Maximum
125V
Surface Mount Compatible (SMC)
Yes
