  11. MGrid VRec SMT O/Cap /Pgs .38AuLF 4Ckt
This item is Discontinued.

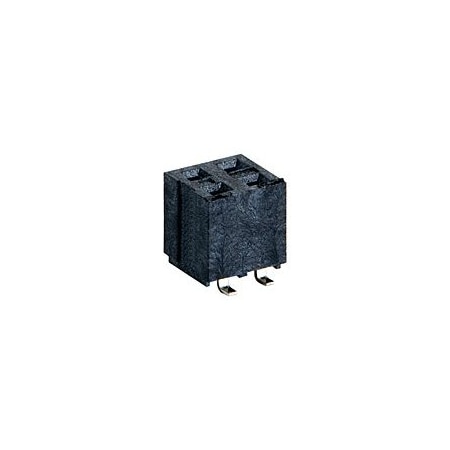

Molex MGrid VRec SMT O/Cap /Pgs .38AuLF 4Ckt 79109-1201

MGrid VRec SMT O/Cap /Pgs .38AuLF 4Ckt (Discontinued)

  • Mfr # 79109-1201
  • Zoro # G4037528
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
79109-1201
Zoro #
G4037528
UPC #
-
Country of Origin
Singapore

Details

Temperature Range - Operating
-55° to +105°C
Durability (mating cycles max)
50
Number of Rows
2
CSA
LR19980
Circuits (Loaded)
4
PCB Retention
Yes
Color - Resin
Black
Process Temperature max. C
260
Pitch - Mating Interface
2.00mm
Plating min - Termination
1.905µm
Material - Resin
High Temperature Thermoplastic
Current - Maximum per Contact
1.0A
Duration at Max. Process Temperature (seconds)
10
Circuits (maximum)
4
Flammability
94V-0
Material - Metal
Phosphor Bronze
Max. Cycles at Max. Process Temperature
1
PCB Locator
Yes
Material - Plating Mating
Gold
Plating min - Mating
0.381µm
UL
E29179
Termination Interface: Style
Surface Mount
Material - Plating Termination
Tin
Orientation
Vertical
Voltage - Maximum
125V
