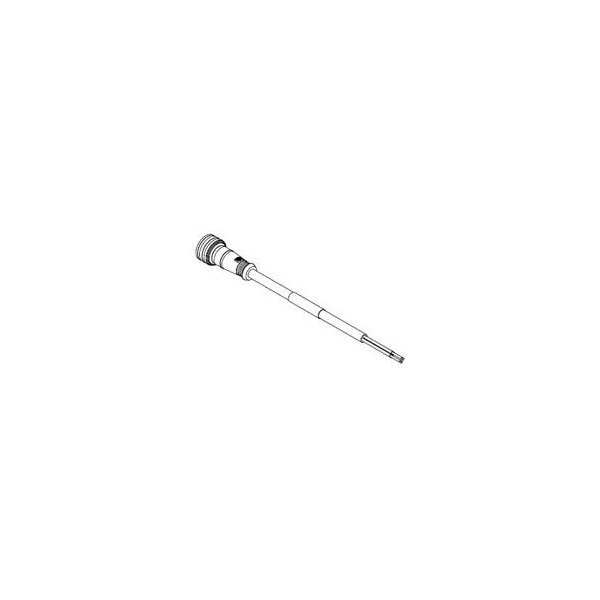

Molex MIC 3P FP 10M DC 360 SHIELDED 1200798010 - main

MIC 3P FP 10M DC 360 SHIELDED

  • Mfr # 1200798010

  • Zoro # G7766242

product price:  $75.69
/ea
Sold in multiples of 2 for $151.38

Key Features

Gender
Female-Pigtail
Connector End A
Ultra-Lock (M12)
Material - Plating Mating
Gold over Nickel
Coupling Style
Push to Lock
Series
120079
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
1200798010
Zoro #
G7766242
UPC #
883906712112
Country of Origin
Unknown

Dimensions

Cable Length
10.0m (32.81')
Cable Diameter
5.30mm (.209")
Wire Size AWG
22

Details

Gender
Female-Pigtail
Connector End A
Ultra-Lock (M12)
Material - Plating Mating
Gold over Nickel
Coupling Style
Push to Lock
Series
120079
Material - O-Ring
Fluoro-elastomer
Voltage - Maximum
250V AC/DC
Color - Cable Jacket
Black
Product Name
Ultra-Lock (M12)
Material - Contact
Copper Alloy
Wire/Cable Type
EU Cable
Material - Coupling Nut
Nickel-plated Brass
Keyway
Single
Temperature Range - Operating
-20°C to +80°C
IP Rating
IP69K
Orientation
Straight to Pigtail
Connector End B
Pigtail
Type
Single Ended
Current - Maximum per Contact
4.0A
Material - Connector Body
PUR
Material - Cable Jacket
PUR/PVC
Poles
4
Protocol
EtherNet
LED Indicator
No
