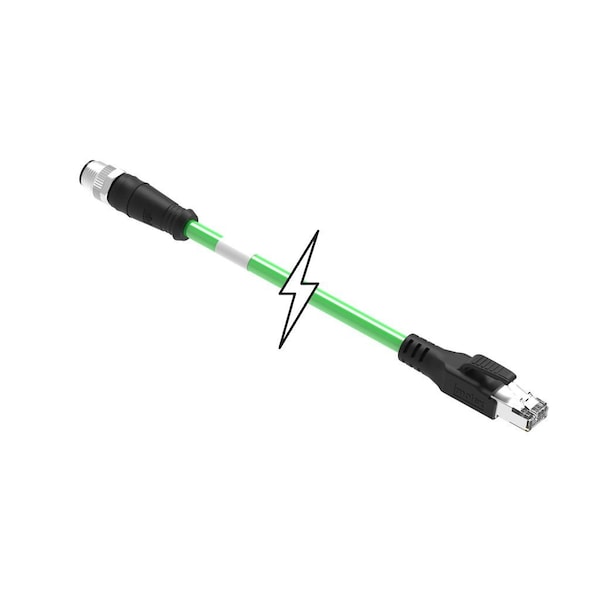

Molex MIC 3P MFE ULOCK 4M 90/90 22/3 1201088331 - main

MIC 3P MFE ULOCK 4M 90/90 22/3

  • Mfr # 1201088331

  • Zoro # G7767213

product price:  $88.49
/ea
Sold in multiples of 12 for $1,061.88

Key Features

Cable Length
3.0m (9.84')
Current - Maximum per Contact
1.5A
LED Indicator
No
Temperature Range - Operating
-40° to +80°C
Orientation
Straight to Straight
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
1201088331
Zoro #
G7767213
UPC #
-
Country of Origin
Unknown

Dimensions

Cable Length
3.0m (9.84')
Cable Diameter
6.80mm (.268")
Wire Size (AWG)
22

Details

Current - Maximum per Contact
1.5A
LED Indicator
No
Temperature Range - Operating
-40° to +80°C
Orientation
Straight to Straight
Voltage - Maximum
30V
Color - Cable Jacket
Green
Product Name
Micro-Change (M12),RJ45
Material - Cable Jacket
TPU
Coupling Style
Push and Latch, Threaded
Material - Connector Body
TPU
Poles
4
Keyway
D-coded
Gender
Male-Male
Connector End B
RJ-45 (standard)
Material - Contact
Brass, Phosphor Bronze
Wire/Cable Type
Shielded TPU
Series
120108
Type
Double Ended
Performance Category
5e
IP Rating
IP20, IP67
Material - Coupling Nut
Nickel-plated Brass
Material - Plating Mating
Gold
Connector End A
Micro-Change (M12)
