Shop MOLEX

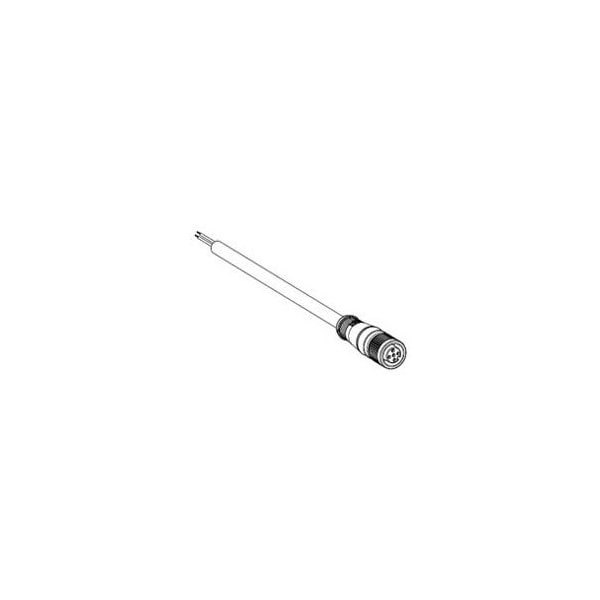

MIC 4P FP 25M 22/4

  • Mfr # 1200650293

  • Zoro # G4033958

product price:
$
112.99
/ea
Free Shipping & Returns

Key Features

CSA
LR6837
Poles
4
Temperature Range - Operating
-20°C to +105°C
Wire Size AWG
22
Material - O-Ring
Fluoro-elastomer
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1200650293
Zoro #
G4033958
UPC #
78678832732
Country of Origin
United States

Dimensions

Wire Size AWG
22
Cable Length
25.0m (82.02')
Cable Diameter
5.33mm (.210")

Details

CSA
LR6837
Poles
4
Temperature Range - Operating
-20°C to +105°C
Material - O-Ring
Fluoro-elastomer
Wire/Cable Type
UL 2661
UL
E152210
Color - Cable Jacket
Yellow
Gender
Female-Pigtail
Material - Connector Body
PVC
Current - Maximum per Contact
4.0A
Material - Coupling Nut
Nickel-plated Brass
Coupling Style
Threaded
Material - Plating Mating
Gold
Material - Cable Jacket
PVC
Voltage - Maximum
250V AC/DC
Orientation
Straight to Pigtail
Keyway
Single
IP Rating
IP67
Product Name
Micro-Change (M12)
Connector End B
Pigtail
Material - Contact
Copper Alloy
Connector End A
Micro-Change (M12)
LED Indicator
No
Series
120065
Type
Single Ended
