  11. MIC 4P MP D-CODED 10m

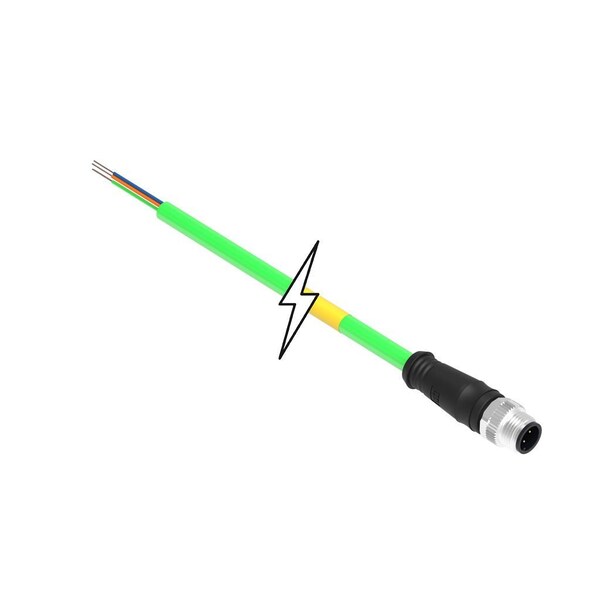

Molex MIC 4P MP D-CODED 10m 1300480282 - main

MIC 4P MP D-CODED 10m

  • Mfr # 1300480282

  • Zoro # G4040468

product price: $121.99
/ea
Free Shipping & Returns

Key Features

Cable Length
10 m
IP Rating
IP67
Type
Single Ended
Keyway
D-coded
LED Indicator
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1300480282
Zoro #
G4040468
UPC #
-
Country of Origin
Germany

Dimensions

Cable Length
10 m
Cable Diameter
6.70mm (.264")
Wire Size
22 AWG

Details

IP Rating
IP67
Type
Single Ended
Keyway
D-coded
LED Indicator
No
Orientation
Straight to Pigtail
Wire/Cable Type
Shielded PUR
Material - Plating Mating
Gold
Gender
Male-Pigtail
Material - Connector Body
PUR
Voltage - Maximum
30V
Coupling Style
Threaded
Poles
4
Temperature Range - Operating
-20°C to +60°C
UL
E200650
Material - Coupling Nut
Nickel-plated Brass
Current - Maximum per Contact
1.5A
Performance Category
5e
Connector End B
Pigtail
Product Name
Micro-Change (M12)
Connector End A
Micro-Change (M12)
Material - Contact
Copper Alloy
Series
120108
Cable Jacket Material
PUR
Cable Jacket Color
Green
Item
Cordset

Description
