  11. MIC 4P MP D-CODED 1M

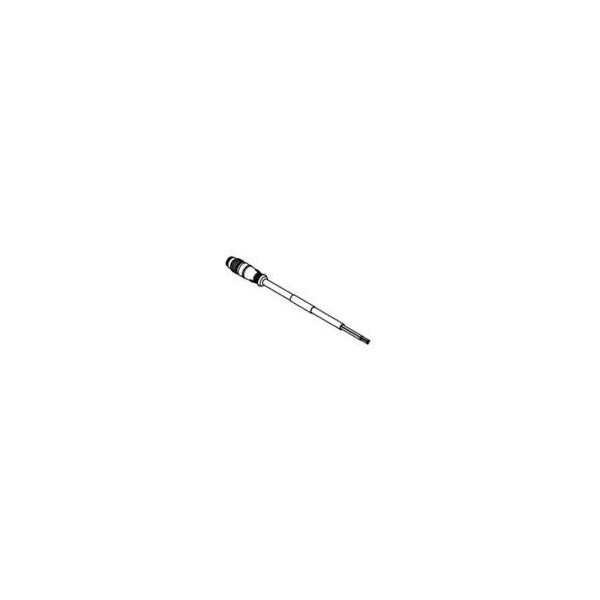

Molex MIC 4P MP D-CODED 1M 1300480038 - main

MIC 4P MP D-CODED 1M

  • Mfr # 1300480038

  • Zoro # G2764803

product price: $30.35
/ea
Sold in multiples of 12 for $364.20

Key Features

Cable Length
1 m
IP Rating
IP67
Keyway
D-coded
Type
Single Ended
Cable Diameter
5.59mm (.220")
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1300480038
Zoro #
G2764803
UPC #
78678803898
Country of Origin
Mexico

Dimensions

Cable Length
1 m
Cable Diameter
5.59mm (.220")
Wire Size
24 AWG

Details

IP Rating
IP67
Keyway
D-coded
Type
Single Ended
UL
E200650
Material - Coupling Nut
Nickel-plated Brass
Voltage - Maximum
30V
Material - Plating Mating
Gold
Poles
4
Current - Maximum per Contact
1.5A
Gender
Male-Pigtail
Orientation
Straight to Pigtail
LED Indicator
No
Coupling Style
Threaded
Temperature Range - Operating
-20°C to +75°C
Material - Connector Body
PVC
Connector End A
Micro-Change (M12)
Performance Category
5e
Material - Contact
Copper Alloy
Series
130048
Connector End B
Pigtail
Product Name
Micro-Change (M12)
Cable Jacket Color
Teal
Cable Jacket Material
PVC
Item
Cordset

Description
