  11. MIC 5P M/MP 1M SHLD PBUS PUR

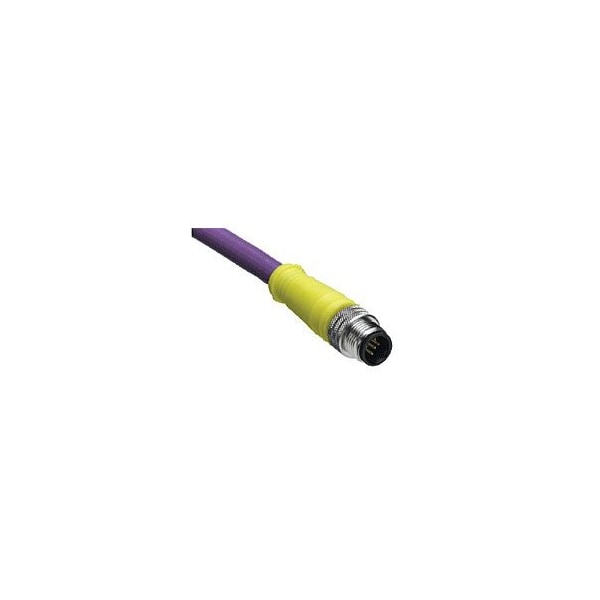

Molex MIC 5P M/MP 1M SHLD PBUS PUR 1200980099 - main

MIC 5P M/MP 1M SHLD PBUS PUR

  • Mfr # 1200980099

  • Zoro # G2746752

product price: $57.49
/ea
Sold in multiples of 24 for $1,379.76

Key Features

Cable Length
1.0m (3.28')
IP Rating
IP67
Type
Single Ended
Keyway
Reverse
Wire/Cable Type
Twisted Pair
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1200980099
Zoro #
G2746752
UPC #
78678886553
Country of Origin
Unknown

Dimensions

Cable Length
1.0m (3.28')
Cable Diameter
8.00mm (.315")
Wire Size
24 AWG

Details

IP Rating
IP67
Type
Single Ended
Keyway
Reverse
Wire/Cable Type
Twisted Pair
Material - Connector Body
PUR
Temperature Range - Operating
-20°C to +80°C
Material - Coupling Nut
Nickel-plated Brass
Color - Cable Jacket
Purple
Coupling Style
Threaded
Current - Maximum per Contact
4.0A
Gender
Male-Pigtail
Material - Plating Mating
Gold
Orientation
Straight to Pigtail
Poles
5
LED Indicator
No
Voltage - Maximum
60V AC/DC
Product Name
Micro-Change (M12)
Protocol
EtherNet
Material - Contact
Copper Alloy
Connector End A
Micro-Change (M12)
Connector End B
Pigtail
Series
120098
Item
Cordset
Cable Jacket Material
PUR

Description
