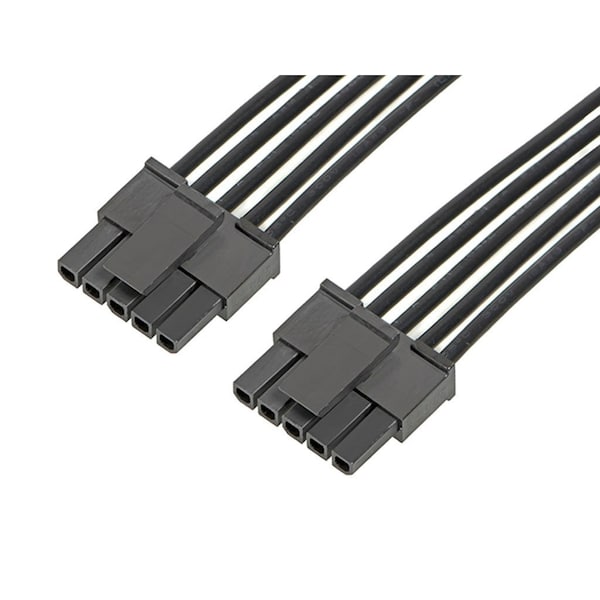

Micro-Fit 3.0 Female-To-Micro-Fit 3.0 Female Off-The-Shelf (Ots) Cable Assembly

  • Mfr # 2147501053
  • Zoro # G105948792
product price:
$
6.69
/ea
Sold in multiples of 15 for $100.35

Key Features

Color
Black
Series
214750
Application
Power, Wire-to-Board, Wire-to-Wire
Length
600 mm
Material
Nylon
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
2147501053
Zoro #
G105948792
UPC #
-
Country of Origin
India
Color
Black
Series
214750
Application
Power, Wire-to-Board, Wire-to-Wire
Material
Nylon
Connector Type
Female-Female
Number of Rows
1
Current Rating
8.5 A
Wire Range
18 AWG
Number of Contacts
5
Hole Center to Center
3 mm
Contact Finish
Tin Plated
Wire Type
Discrete
Type
Discrete Wire Assembly
Terminal Finish
Tin Plated
Material - Plating Mating
Tin
Current - Maximum per Contact
8.5A
Product Name
Micro-Fit 3.0
Circuits (Loaded)
5
Plating min - Mating
1.016µm
Connector to Connector
Micro-Fit 3.0 Both Ends
Pitch - Mating Interface
3.00mm
Material - Metal
Phosphor Bronze
Wire/Cable Type
Discrete Wire, UL 10002
Voltage - Maximum
300V AC/DC
Overmolded
No
Termination Interface Style
Crimp or Compression
Lock to Mating Part
Yes
Assembly Configuration
Dual Ended Connectors
Material - Plating Termination
Tin
Single Ended
No
Material - Resin
Nylon

Dimensions

Length
600 mm
Max. Insulation Dia.
1.85 mm
Contact Plating Thickness
1.016 µm
Wire Size (AWG)
18
Wire Insulation Diameter
1.85mm max.
Cable Length
600.00mm
