This item is Discontinued.

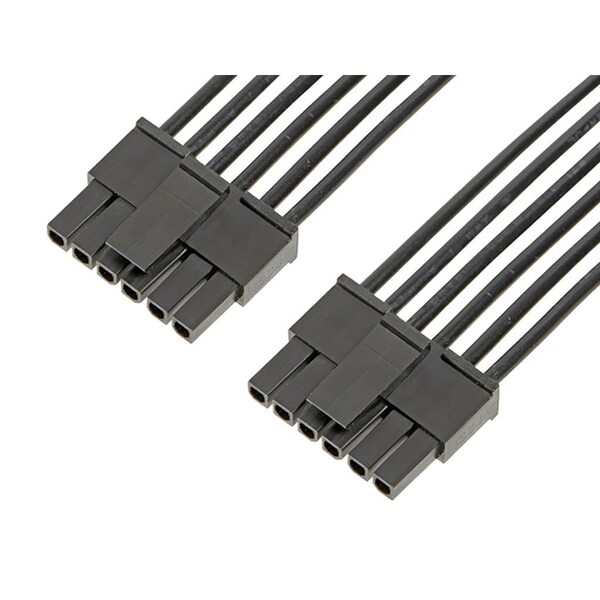

Molex Micro-Fit 3.0 Female-To-Micro-Fit 3.0 Female Off-The-Shelf (Ots) Cable Assembly 2147501063

Micro-Fit 3.0 Female-To-Micro-Fit 3.0 Female Off-The-Shelf (Ots) Cable Assembly (Discontinued)

  • Mfr # 2147501063
  • Zoro # G305959260
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2147501063
Zoro #
G305959260
UPC #
-
Country of Origin
India

Dimensions

Cable Length
600.00mm
Wire Size AWG
18
Wire Insulation Diameter
1.85mm max.

Details

Application
Power, Wire-to-Board, Wire-to-Wire
Series
214750
Type
Discrete Wire Assembly
Plating min - Termination
1.016µm
Material - Resin
Nylon
Number of Rows
1
Color - Resin
Black
Material - Metal
Phosphor Bronze
Circuits (Loaded)
6
Wire/Cable Type
Discrete Wire, UL 10002
Material - Plating Mating
Tin
Material - Plating Termination
Tin
Pitch - Mating Interface
3.00mm
Current - Maximum per Contact
8.5A
Gender
Female-Female
Plating min - Mating
1.016µm
Lock to Mating Part
Yes
Assembly Configuration
Dual Ended Connectors
Overmolded
No
Connector to Connector
Micro-Fit 3.0 Both Ends
Termination Interface Style
Crimp or Compression
Voltage - Maximum
300V AC/DC
Product Name
Micro-Fit 3.0
Single Ended
No
