Shop MOLEX

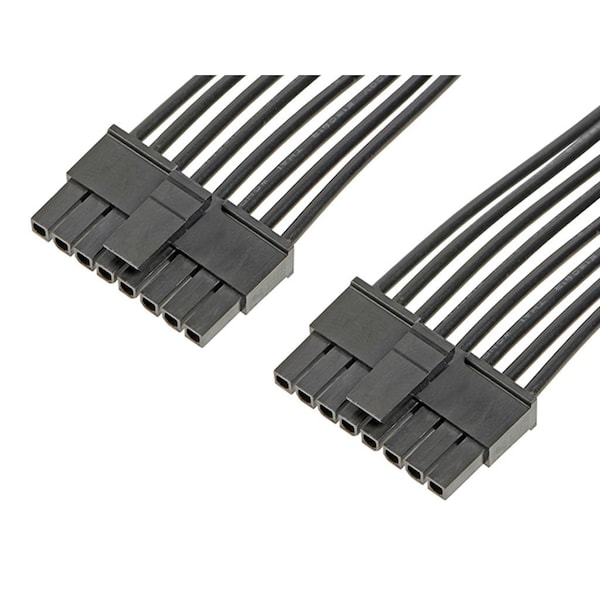

Micro-Fit 3.0 Female-To-Micro-Fit 3.0 Female Off-The-Shelf (Ots) Cable Assembly

  • Mfr # 2147501082

  • Zoro # G005959164

product price:
$
5.89
/ea
Sold in multiples of 15 for $88.35

Key Features

Cable Length
300.00mm
Type
Discrete Wire Assembly
Series
214750
Application
Power, Wire-to-Board, Wire-to-Wire
Lock to Mating Part
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2147501082
Zoro #
G005959164
UPC #
-
Country of Origin
India

Dimensions

Cable Length
300.00mm
Wire Insulation Diameter
1.85mm max.
Wire Size AWG
18

Details

Type
Discrete Wire Assembly
Series
214750
Application
Power, Wire-to-Board, Wire-to-Wire
Lock to Mating Part
Yes
Wire/Cable Type
Discrete Wire, UL 10002
Material - Metal
Phosphor Bronze
Gender
Female-Female
Circuits (Loaded)
8
Material - Plating Termination
Tin
Pitch - Mating Interface
3.00mm
Number of Rows
1
Plating min - Mating
1.016µm
Plating min - Termination
1.016µm
Color - Resin
Black
Material - Plating Mating
Tin
Material - Resin
Nylon
Current - Maximum per Contact
8.5A
Product Name
Micro-Fit 3.0
Termination Interface Style
Crimp or Compression
Assembly Configuration
Dual Ended Connectors
Single Ended
No
Overmolded
No
Connector to Connector
Micro-Fit 3.0 Both Ends
Voltage - Maximum
300V AC/DC
