Shop MOLEX

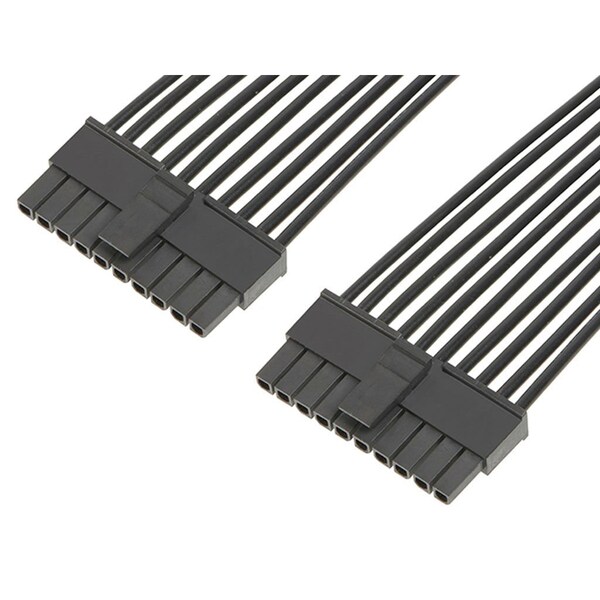

Micro-Fit 3.0 Female-To-Micro-Fit 3.0 Female Off-The-Shelf (Ots) Cable Assembly

  • Mfr # 2147502102

  • Zoro # G305948783

product price:
$
9.29
/ea
Sold in multiples of 10 for $92.90

Key Features

Color
Black
Series
214750
Application
Power, Wire-to-Board, Wire-to-Wire
Length
300 mm
Material
Nylon
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2147502102
Zoro #
G305948783
UPC #
-
Country of Origin
India

Dimensions

Length
300 mm
Max. Insulation Dia.
1.85 mm
Contact Plating Thickness
0.762 µm
Wire Insulation Diameter
1.85mm max.
Cable Length
300.00mm
Wire Size (AWG)
18

Details

Color
Black
Series
214750
Application
Power, Wire-to-Board, Wire-to-Wire
Material
Nylon
Connector Type
Female-Female
Number of Contacts
10
Current Rating
8.5 A
Wire Range
18 AWG
Hole Center to Center
3 mm
Number of Rows
1
Contact Finish
Gold Plated
Type
Discrete Wire Assembly
Wire Type
Discrete
Terminal Finish
Tin Plated
Material - Metal
Phosphor Bronze
Single Ended
No
Material - Plating Mating
Gold
Plating min - Mating
0.762µm
Product Name
Micro-Fit 3.0
Circuits (Loaded)
10
Overmolded
No
Current - Maximum per Contact
8.5A
Material - Plating Termination
Tin
Lock to Mating Part
Yes
Voltage - Maximum
300V AC/DC
Material - Resin
Nylon
Assembly Configuration
Dual Ended Connectors
Pitch - Mating Interface
3.00mm
Termination Interface Style
Crimp or Compression
Wire/Cable Type
Discrete Wire, UL 10002
Connector to Connector
Micro-Fit 3.0 Both Ends
