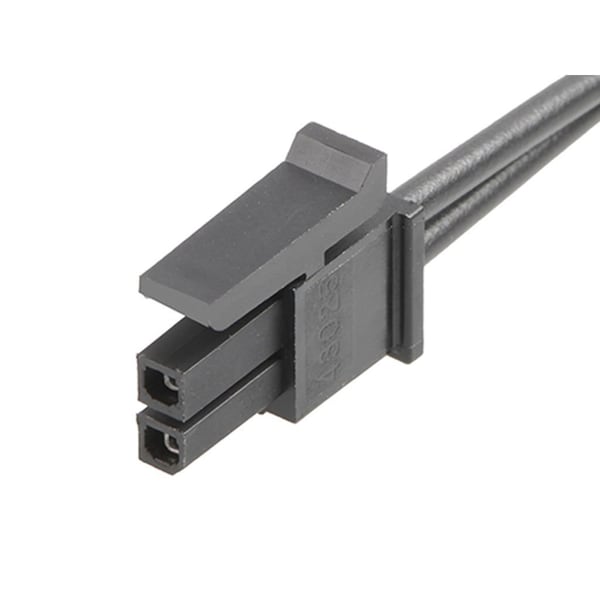

Micro-Fit 3.0 Female-To-Pigtail Off-The-Shelf (Ots) Cable Assembly, Dual Row

  • Mfr # 2147561023
  • Zoro # G905790324

product price:
$
2.59
/ea
Sold in multiples of 45 for $116.55

Key Features

Color
Black
Series
214756
Application
Power, Wire-to-Board, Wire-to-Wire
Length
600 mm
Connector Type
Female-Pigtail
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
2147561023
Zoro #
G905790324
UPC #
-
Country of Origin
India
Color
Black
Series
214756
Application
Power, Wire-to-Board, Wire-to-Wire
Connector Type
Female-Pigtail
Material
Nylon
Current Rating
8.5 A
Hole Center to Center
3 mm
Number of Contacts
2
Number of Rows
2
Terminal Type
Crimp or Compression
Contact Finish
Tin Plated
Type
Discrete Wire Assembly
Wire Range
18 AWG
Terminal Finish
Tin Plated
Voltage - Maximum
300V AC/DC
Assembly Configuration
Single Ended Connector
Wire/Cable Type
UL 1061
Product Name
Micro-Fit 3.0
Material - Metal
Phosphor Bronze
Single Ended
Yes
Material - Plating Termination
Tin
Circuits (Loaded)
2
Lock to Mating Part
Yes
Plating min - Mating
1.016µm
Material - Resin
Nylon
Pitch - Mating Interface
3.00mm
Overmolded
No
Current - Maximum per Contact
8.5A
Material - Plating Mating
Tin
Connector to Connector
Micro-Fit 3.0-to-Pigtail

Dimensions

Length
600 mm
Max. Insulation Dia.
1.85 mm
Contact Plating Thickness
1.016 µm
Wire Insulation Diameter
1.85mm max.
Wire Size (AWG)
18
Cable Length
600.00mm
