  9. Micro-Fit 3.0 Female-To-Pigtail Off-The-Shelf (Ots) Cable Assembly, Single Row

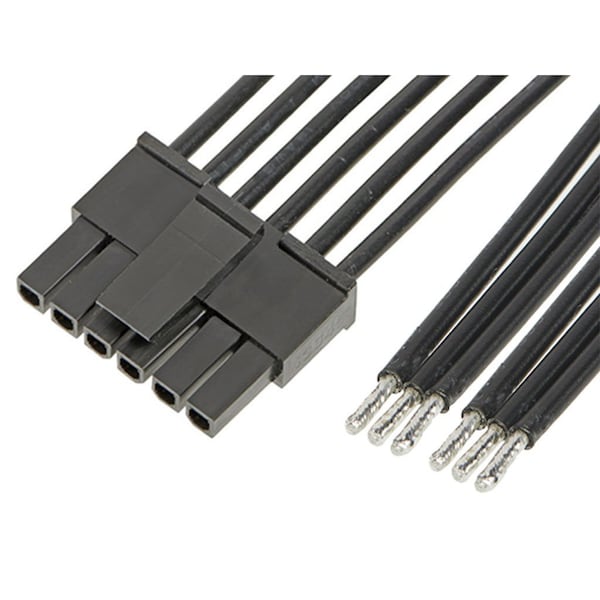

Molex Micro-Fit 3.0 Female-To-Pigtail Off-The-Shelf (Ots) Cable Assembly, Single Row 2147511063 - main

Micro-Fit 3.0 Female-To-Pigtail Off-The-Shelf (Ots) Cable Assembly, Single Row

  • Mfr # 2147511063

  • Zoro # G105959590

product price: $5.49
/ea
Sold in multiples of 900 for $4,941.00

Key Features

Color
Black
Series
214751
Application
Power, Wire-to-Board, Wire-to-Wire
Length
600 mm
Material
Nylon
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2147511063
Zoro #
G105959590
UPC #
-
Country of Origin
India

Dimensions

Length
600 mm
Max. Insulation Dia.
1.85 mm
Contact Plating Thickness
1.016 µm
Wire Size (AWG)
18
Cable Length
600.00mm
Wire Insulation Diameter
1.85mm max.

Details

Color
Black
Series
214751
Application
Power, Wire-to-Board, Wire-to-Wire
Material
Nylon
Connector Type
Female-Pigtail
Contact Finish
Tin Plated
Type
Discrete Wire Assembly
Wire Range
18 AWG
Number of Contacts
6
Wire Type
Discrete
Features
Single Ended
Hole Center to Center
3 mm
Current Rating
8.5 A
Number of Rows
1
Terminal Finish
Tin Plated
Pitch - Mating Interface
3.00mm
Material - Plating Mating
Tin
Overmolded
No
Product Name
Micro-Fit 3.0
Current - Maximum per Contact
8.5A
Material - Resin
Nylon
Wire/Cable Type
Discrete Wire, UL 10002
Lock to Mating Part
Yes
Material - Metal
Phosphor Bronze
Voltage - Maximum
300V AC/DC
Single Ended
Yes
Assembly Configuration
Dual Ended Connectors
Connector to Connector
Micro-Fit 3.0-to-Pigtail
Plating min - Mating
1.016µm
Material - Plating Termination
Tin
Termination Interface Style
Crimp or Compression
Circuits (Loaded)
6
