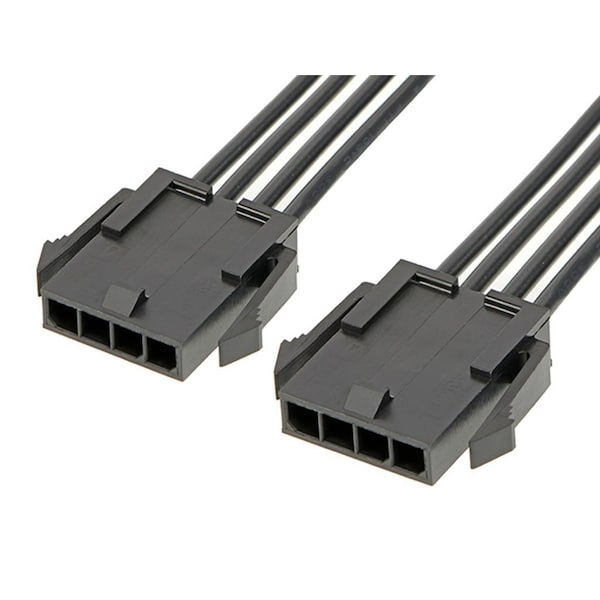

Micro-Fit 3.0 Male-To-Micro-Fit 3.0 Male Off-The-Shelf (Ots) Cable Assembly

  • Mfr # 2147521041

  • Zoro # G705948918

product price:
$
3.29
/ea
Sold in multiples of 30 for $98.70

Key Features

Color
Black
Series
214752
Application
Power, Wire-to-Wire
Length
150 mm
Material
Nylon
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2147521041
Zoro #
G705948918
UPC #
-
Country of Origin
India

Dimensions

Length
150 mm
Max. Insulation Dia.
1.85 mm
Contact Plating Thickness
1.016 µm
Wire Size (AWG)
18
Wire Insulation Diameter
1.85mm max.
Cable Length
150.00mm

Details

Color
Black
Series
214752
Application
Power, Wire-to-Wire
Material
Nylon
Connector Type
Male-Male
Wire Type
Discrete
Hole Center to Center
3 mm
Number of Rows
1
Number of Contacts
4
Current Rating
8.5 A
Contact Finish
Tin Plated
Wire Range
18 AWG
Type
Discrete Wire Assembly
Terminal Finish
Tin Plated
Product Name
Micro-Fit 3.0
Material - Plating Termination
Tin
Termination Interface Style
Crimp or Compression
Lock to Mating Part
Yes
Single Ended
No
Voltage - Maximum
300V AC/DC
Circuits (Loaded)
4
Plating min - Mating
1.016µm
Material - Metal
Phosphor Bronze
Connector to Connector
Micro-Fit 3.0 Both Ends
Current - Maximum per Contact
8.5A
Pitch - Mating Interface
3.00mm
Wire/Cable Type
Discrete Wire, UL 10002
Assembly Configuration
Dual Ended Connectors
Material - Resin
Nylon
Overmolded
No
Material - Plating Mating
Tin
