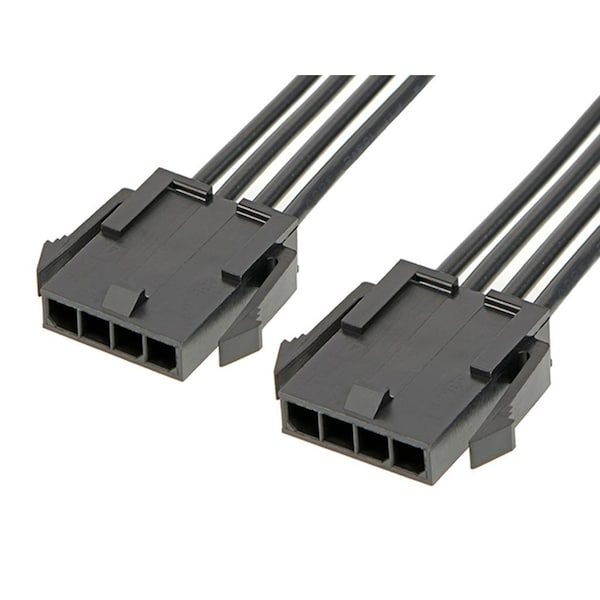

Micro-Fit 3.0 Male-To-Micro-Fit 3.0 Male Off-The-Shelf (Ots) Cable Assembly

  • Mfr # 2147522041

  • Zoro # G405959351


product price: $2.89
/ea
Sold in multiples of 25 for $72.25

Key Features

Series
214752
Cable Length
150.00mm
Type
Discrete Wire Assembly
Application
Power, Wire-to-Wire
Material - Resin
Nylon
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2147522041
Zoro #
G405959351
UPC #
-
Country of Origin
Thailand

Dimensions

Cable Length
150.00mm
Wire Size AWG
18
Wire Insulation Diameter
1.85mm max.

Details

Series
214752
Type
Discrete Wire Assembly
Application
Power, Wire-to-Wire
Material - Resin
Nylon
Gender
Male-Male
Color - Resin
Black
Wire/Cable Type
Discrete Wire, UL 10002
Lock to Mating Part
Yes
Pitch - Mating Interface
3.00mm
Material - Metal
Phosphor Bronze
Circuits (Loaded)
4
Plating min - Mating
0.762µm
Material - Plating Mating
Gold
Material - Plating Termination
Tin
Number of Rows
1
Plating min - Termination
2.540µm
Current - Maximum per Contact
8.5A
Single Ended
No
Voltage - Maximum
300V AC/DC
Termination Interface Style
Crimp or Compression
Connector to Connector
Micro-Fit 3.0 Both Ends
Assembly Configuration
Dual Ended Connectors
Overmolded
No
Product Name
Micro-Fit 3.0
