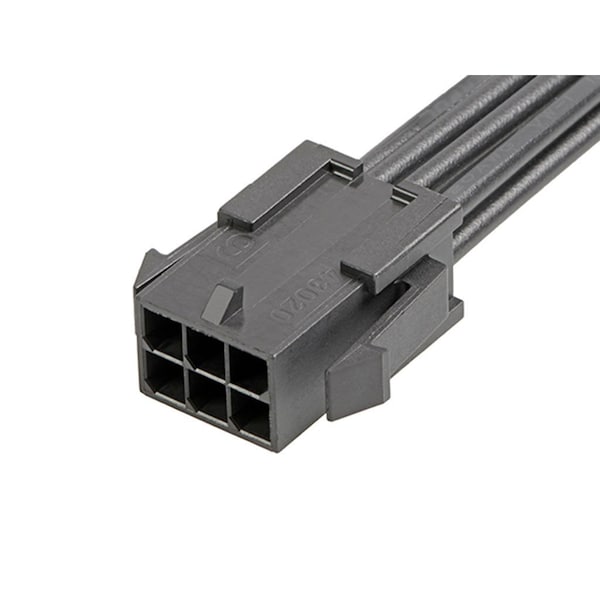

Micro-Fit 3.0 Male-To-Micro-Fit 3.0 Male Off-The-Shelf (Ots) Cable Assembly

  • Mfr # 2147572061
  • Zoro # G005948571
product price:
$
5.49
/ea
Sold in multiples of 20 for $109.80

Key Features

Color
Black
Series
214757
Application
Power, Wire-to-Wire
Length
150 mm
Connector Type
Male-Male
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2147572061
Zoro #
G005948571
UPC #
-
Country of Origin
Thailand

Dimensions

Length
150 mm
Max. Insulation Dia.
1.85 mm
Contact Plating Thickness
0.762 µm
Cable Length
150.00mm
Wire Size (AWG)
18
Wire Insulation Diameter
1.85mm max.

Details

Color
Black
Series
214757
Application
Power, Wire-to-Wire
Connector Type
Male-Male
Material
Nylon
Type
Discrete Wire Assembly
Contact Finish
Gold Plated
Terminal Type
Crimp or Compression
Hole Center to Center
3 mm
Current Rating
8.5 A
Number of Rows
2
Number of Contacts
6
Wire Range
18 AWG
Terminal Finish
Tin Plated
Material - Plating Termination
Tin
Pitch - Mating Interface
3.00mm
Wire/Cable Type
UL 1061
Circuits (Loaded)
6
Plating min - Mating
0.762µm
Lock to Mating Part
Yes
Overmolded
No
Single Ended
No
Connector to Connector
Micro-Fit 3.0 Both Ends
Material - Metal
Phosphor Bronze
Material - Resin
Nylon
Assembly Configuration
Dual Ended Connectors
Voltage - Maximum
300V AC/DC
Material - Plating Mating
Gold
Current - Maximum per Contact
8.5A
Product Name
Micro-Fit 3.0
