  11. Micro-Fit 3.0 Male-To-Micro-Fit 3.0 Male Off-The-Shelf (Ots) Cable Assembly

This item is Discontinued.

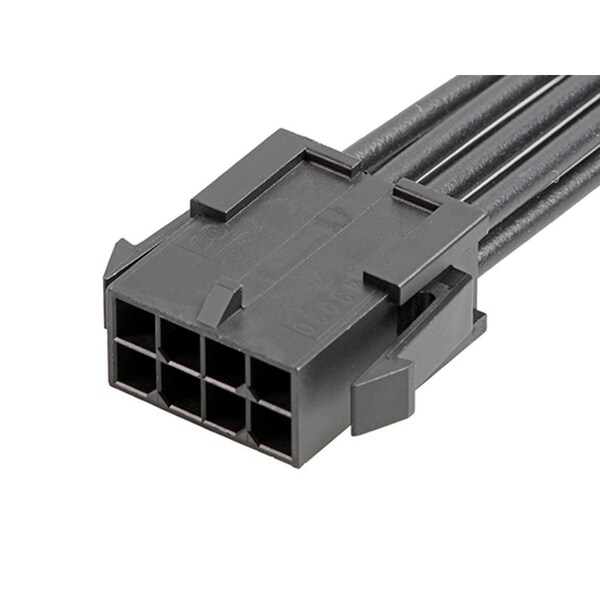

Molex Micro-Fit 3.0 Male-To-Micro-Fit 3.0 Male Off-The-Shelf (Ots) Cable Assembly 2147572082

Micro-Fit 3.0 Male-To-Micro-Fit 3.0 Male Off-The-Shelf (Ots) Cable Assembly (Discontinued)

  • Mfr # 2147572082
  • Zoro # G205959261
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2147572082
Zoro #
G205959261
UPC #
-
Country of Origin
India

Dimensions

Cable Length
300.00mm
Wire Insulation Diameter
1.85mm max.
Wire Size AWG
18

Details

Series
214757
Type
Discrete Wire Assembly
Application
Power, Wire-to-Wire
Material - Plating Mating
Gold
Color - Resin
Black
Number of Rows
2
Wire/Cable Type
UL 1061
Termination Interface: Style
Crimp or Compression
Lock to Mating Part
Yes
Plating min - Termination
2.540µm
Gender
Male-Male
Material - Plating Termination
Tin
Current - Maximum per Contact
8.5A
Plating min - Mating
0.762µm
Circuits (Loaded)
8
Material - Resin
Nylon
Material - Metal
Phosphor Bronze
Pitch - Mating Interface
3.00mm
Assembly Configuration
Dual Ended Connectors
Overmolded
No
Product Name
Micro-Fit 3.0
Connector to Connector
Micro-Fit 3.0 Both Ends
Voltage - Maximum
300V AC/DC
Single Ended
No
