Shop MOLEX

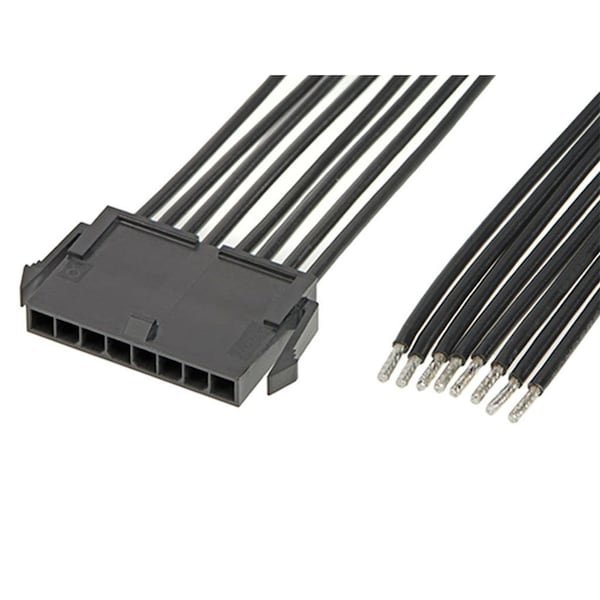

Micro-Fit 3.0 Male-To-Pigtail Off-The-Shelf (Ots) Cable Assembly, Single Row

  • Mfr # 2147531082

  • Zoro # G505789094

product price:
$
5.15
/ea
Sold in multiples of 20 for $103.00

Key Features

Color
Black
Series
214753
Application
Power, Wire-to-Wire
Length
300 mm
Material
Nylon
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
2147531082
Zoro #
G505789094
UPC #
-
Country of Origin
India
Color
Black
Series
214753
Application
Power, Wire-to-Wire
Material
Nylon
Connector Type
Male-Pigtail
Wire Range
18 AWG
Wire Type
Discrete
Contact Finish
Tin Plated
Number of Rows
1
Features
Single Ended
Hole Center to Center
3 mm
Type
Discrete Wire Assembly
Current Rating
8.5 A
Number of Contacts
8
Terminal Finish
Tin Plated
Voltage - Maximum
300V AC/DC
Current - Maximum per Contact
8.5A
Material - Plating Mating
Tin
Circuits (Loaded)
8
Termination Interface Style
Crimp or Compression
Lock to Mating Part
Yes
Material - Metal
Phosphor Bronze
Assembly Configuration
Dual Ended Connectors
Material - Plating Termination
Tin
Plating min - Mating
1.016µm
Product Name
Micro-Fit 3.0
Material - Resin
Nylon
Single Ended
Yes
Overmolded
No
Wire/Cable Type
Discrete Wire, UL 10002
Pitch - Mating Interface
3.00mm
Connector to Connector
Micro-Fit 3.0-to-Pigtail
