  9. Micro-Fit Plus Sr Ra Hdr Assy 30Au 1X4

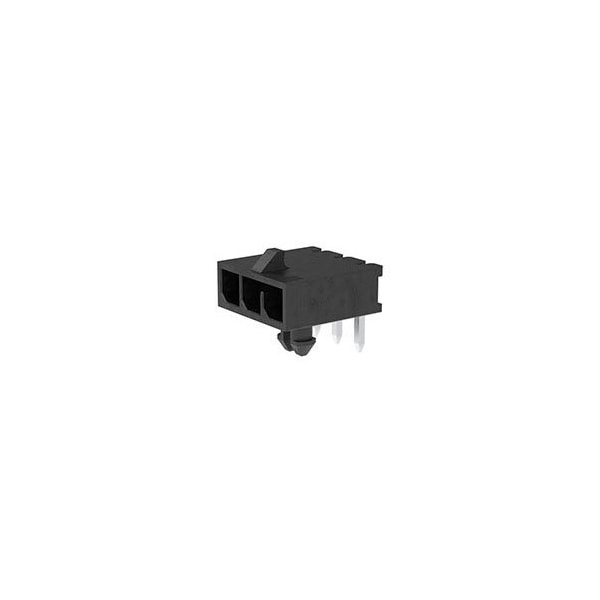

Molex Micro-Fit Plus Sr Ra Hdr Assy 30Au 1X4 2157603004 - main

Micro-Fit Plus Sr Ra Hdr Assy 30Au 1X4

  • Mfr # 2157603004

  • Zoro # G705909988

product price: $2.29
/ea
Sold in multiples of 40 for $91.60

Key Features

Number of Rows
1
Series
215760
Application
Power, Wire-to-Board
Material - Metal
High Copper Alloy
Material - Plating Mating
Gold
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2157603004
Zoro #
G705909988
UPC #
-
Country of Origin
China

Dimensions

PC Tail Length
3.17mm
PCB Thickness - Recommended
1.57mm

Details

Number of Rows
1
Series
215760
Application
Power, Wire-to-Board
Material - Metal
High Copper Alloy
Material - Plating Mating
Gold
Pitch - Mating Interface
3.00mm
Color - Resin
Black
Flammability
94V-0
Plating min - Mating
0.762µm
Polarized to Mating Part
Yes
Circuits (Loaded)
4
PCB Retention
Yes
CSA
LR19980
Glow-Wire Capable
Yes
Temperature Range - Operating
-40° to +105°C
Lock to Mating Part
Yes
Product Name
Micro-Fit+
UL
E29179
Orientation
Right Angle
First Mate / Last Break
No
Polarized to PCB
Yes
Breakaway
No
Keying to Mating Part
Yes
Shrouded
Yes
Durability (mating cycles max)
200
Component Type
PCB Header
Material - Plating Termination
Matte Tin
Current - Maximum per Contact
12.5A
Material - Resin
Liquid Crystal Polymer
Termination Interface Style
Through Hole
Voltage - Maximum
600V AC (RMS)/DC
