  9. Micro-Fit Plus Sr Vt Hdr Assy 30Au 1X4

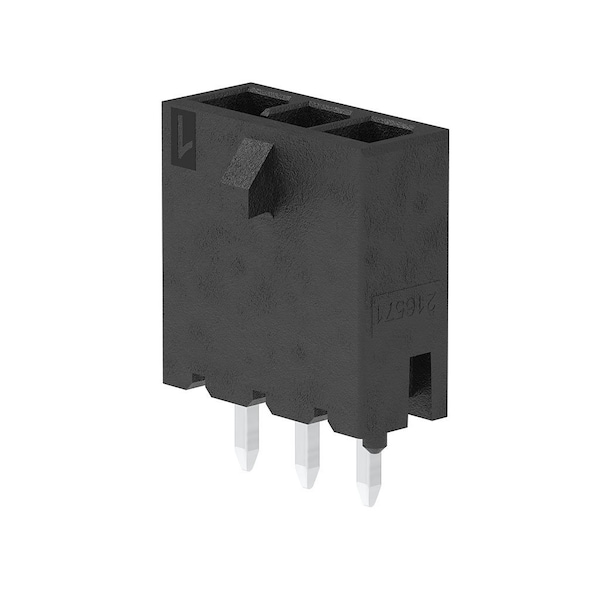

Molex Micro-Fit Plus Sr Vt Hdr Assy 30Au 1X4 2165713004 - main

Micro-Fit Plus Sr Vt Hdr Assy 30Au 1X4

  • Mfr # 2165713004

  • Zoro # G505909836

product price: $2.25
/ea
Sold in multiples of 40 for $90.00

Key Features

Number of Rows
1
Series
216571
Application
Power, Wire-to-Board
Material - Metal
High Copper Alloy
Component Type
PCB Header
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2165713004
Zoro #
G505909836
UPC #
-
Country of Origin
China

Dimensions

PCB Thickness - Recommended
1.57mm
PC Tail Length
3.18mm

Details

Number of Rows
1
Series
216571
Application
Power, Wire-to-Board
Material - Metal
High Copper Alloy
Component Type
PCB Header
Material - Plating Mating
Gold
Shrouded
Yes
Glow-Wire Capable
Yes
Max-Temp
260
Product Name
Micro-Fit+
Termination Interface Style
Through Hole
Polarized to Mating Part
Yes
Color - Resin
Black
PCB Retention
Yes
Current - Maximum per Contact
12.5A
Material - Resin
Liquid Crystal Polymer
Flammability
94V-0
Durability (mating cycles max)
200
Max-Cycle
3
Polarized to PCB
Yes
Plating min - Mating
0.762µm
Orientation
Vertical
CSA
LR19980
Breakaway
No
Keying to Mating Part
Yes
Temperature Range - Operating
-40° to +105°C
Circuits (Loaded)
4
Lock to Mating Part
Yes
Pitch - Mating Interface
3.00mm
UL
E29179
Max-Duration
30
Voltage - Maximum
600V AC (RMS)/DC
Material - Plating Termination
Matte Tin
First Mate / Last Break
No
