  9. Micro-Fit Plus Sr Vt Hdr Assy 30Au 1X5
This item is Discontinued.

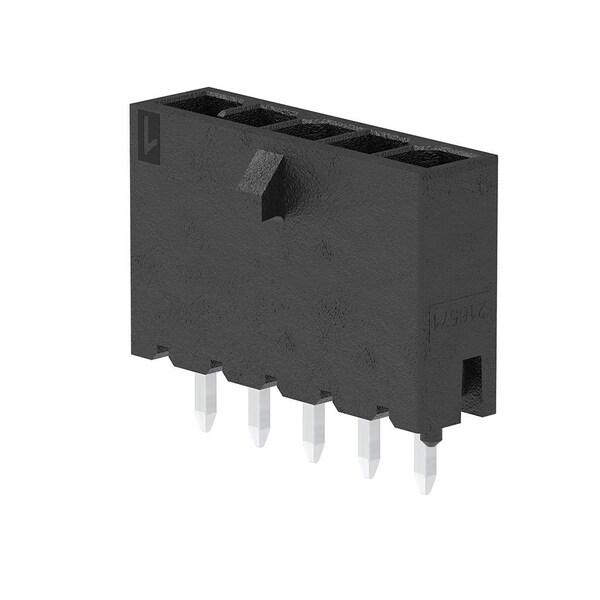

Molex Micro-Fit Plus Sr Vt Hdr Assy 30Au 1X5 2165713005

Micro-Fit Plus Sr Vt Hdr Assy 30Au 1X5 (Discontinued)

  • Mfr # 2165713005
  • Zoro # G405909820
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2165713005
Zoro #
G405909820
UPC #
-
Country of Origin
China

Dimensions

PCB Thickness - Recommended
1.57mm
PC Tail Length
3.18mm

Details

Number of Rows
1
Series
216571
Application
Power, Wire-to-Board
Max-Cycle
3
Glow-Wire Capable
Yes
Breakaway
No
Voltage - Maximum
600V AC (RMS)/DC
Temperature Range - Operating
-40° to +105°C
Color - Resin
Black
UL
E29179
Material - Plating Termination
Matte Tin
Lock to Mating Part
Yes
Material - Resin
Liquid Crystal Polymer
Shrouded
Yes
Material - Plating Mating
Gold
Plating min - Mating
0.762µm
Durability (mating cycles max)
200
Product Name
Micro-Fit+
Polarized to Mating Part
Yes
Max-Temp
260
CSA
LR19980
Polarized to PCB
Yes
Max-Duration
30
First Mate / Last Break
No
Termination Interface Style
Through Hole
Keying to Mating Part
Yes
Material - Metal
High Copper Alloy
Pitch - Mating Interface
3.00mm
Circuits (Loaded)
5
Flammability
94V-0
PCB Retention
Yes
Current - Maximum per Contact
12.5A
Orientation
Vertical
Component Type
PCB Header
