  9. Micro-Fit+ Right-Angle Header, 3.00Mm Pitch, Dual Row, 10 Circuits, Matt

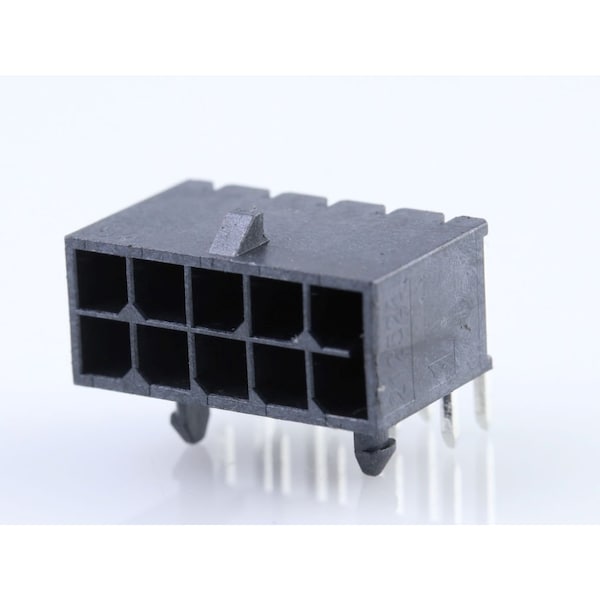

Molex Micro-Fit+ Right-Angle Header, 3.00Mm Pitch, Dual Row, 10 Circuits, Matt 2125281000 - main

Micro-Fit+ Right-Angle Header, 3.00Mm Pitch, Dual Row, 10 Circuits, Matt

  • Mfr # 2125281000

  • Zoro # G605910060

product price: $2.35
/ea
Sold in multiples of 40 for $94.00

Key Features

Color
Black
Number of Rows
2
Series
212528
Max. Voltage
600V AC/DC
Application
Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2125281000
Zoro #
G605910060
UPC #
-
Country of Origin
China

Dimensions

PC Tail Length
3.18mm
PCB Thickness - Recommended
1.57mm

Details

Color
Black
Number of Rows
2
Series
212528
Max. Voltage
600V AC/DC
Application
Power, Wire-to-Board
Max. Temp.
105°C
Material
Liquid Crystal Polymer
Terminal Type
Through Hole
Hole Center to Center
3 mm
Features
Glow-Wire Capable
Current Rating
12.5 A
Terminal Finish
Matte Tin Plated
Contact Finish
Matte Tin Plated
Number of Contacts
10
Pitch - Mating Interface
3.00mm
Circuits (Loaded)
10
Temperature Range - Operating
-40° to +105°C
Current - Maximum per Contact
12.5A
Material - Plating Termination
Matte Tin
Material - Resin
Liquid Crystal Polymer
Orientation
Right Angle
Glow-Wire Capable
Yes
Product Name
Micro-Fit+
Breakaway
No
First Mate / Last Break
No
Durability (mating cycles max)
25
Keying to Mating Part
Yes
Polarized to Mating Part
Yes
Material - Plating Mating
Matte Tin
Component Type
PCB Header
Polarized to PCB
Yes
Lock to Mating Part
Yes
CSA
LR19980
Voltage - Maximum
600V AC (RMS)/DC
Shrouded
Yes
Flammability
94V-0
Material - Metal
High Copper Alloy
UL
E29179
