  9. Micro-Fit+ Right-Angle Header, 3.00Mm Pitch, Dual Row, 2 Circuits, Matte

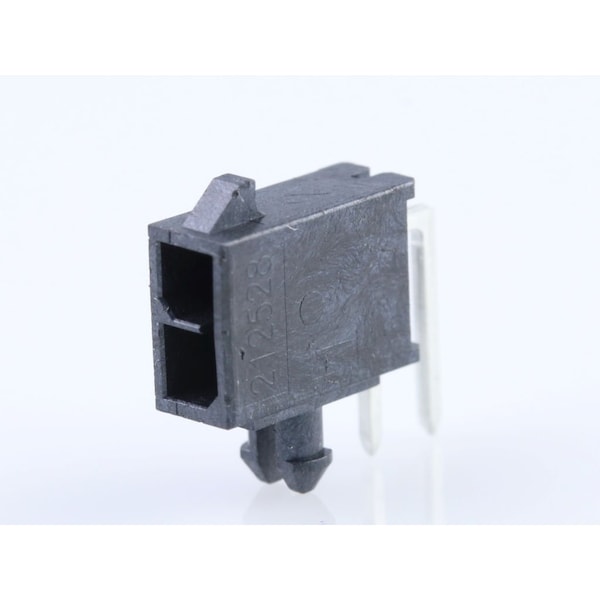

Molex Micro-Fit+ Right-Angle Header, 3.00Mm Pitch, Dual Row, 2 Circuits, Matte 2125280200 - main

Micro-Fit+ Right-Angle Header, 3.00Mm Pitch, Dual Row, 2 Circuits, Matte

  • Mfr # 2125280200

  • Zoro # G905910104

product price: $1.39
/ea
Sold in multiples of 60 for $83.40

Key Features

Color
Black
Number of Rows
2
Series
212528
Max. Voltage
600V AC/DC
Application
Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2125280200
Zoro #
G905910104
UPC #
-
Country of Origin
China

Dimensions

PCB Thickness - Recommended
1.57mm

Details

Color
Black
Number of Rows
2
Series
212528
Max. Voltage
600V AC/DC
Application
Power, Wire-to-Board
Hole Center to Center
3 mm
Max. Temp.
105°C
Terminal Type
Through Hole
Material
Liquid Crystal Polymer
Features
Glow-Wire Capable
Contact Finish
Matte Tin Plated
Terminal Finish
Matte Tin Plated
Number of Contacts
2
Current Rating
12.5 A
Durability (mating cycles max)
25
Pitch - Mating Interface
3.00mm
Breakaway
No
First Mate / Last Break
No
Material - Metal
High Copper Alloy
Orientation
Right Angle
Component Type
PCB Header
Flammability
94V-0
Keying to Mating Part
Yes
Polarized to Mating Part
Yes
Material - Plating Termination
Matte Tin
Temperature Range - Operating
-40° to +105°C
Current - Maximum per Contact
12.5A
Polarized to PCB
Yes
UL
E29179
Material - Plating Mating
Matte Tin
CSA
LR19980
Material - Resin
Liquid Crystal Polymer
Product Name
Micro-Fit+
Glow-Wire Capable
Yes
Shrouded
Yes
Circuits (Loaded)
2
Voltage - Maximum
600V AC (RMS)/DC
Lock to Mating Part
Yes
