Shop MOLEX

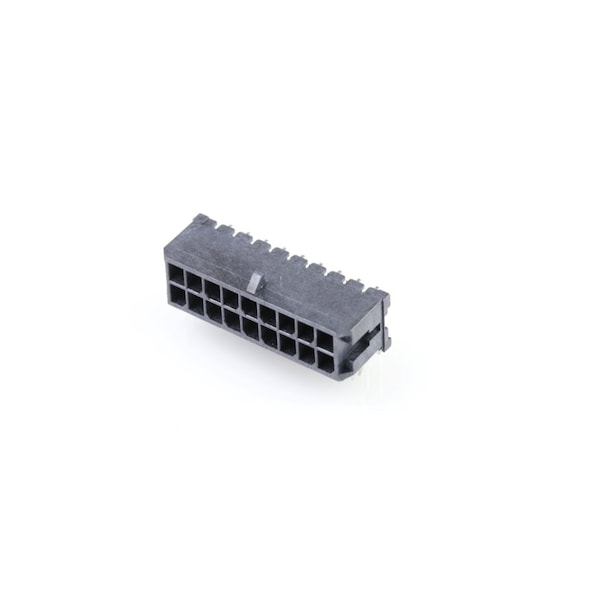

Microfit 3.0 RA PTH w/clip DR Tin 18 Ckt

  • Mfr # 43045-1821

  • Zoro # G4033650

product price:
$
6.15
/ea
Sold in multiples of 20 for $123.00

Key Features

Duration at Max. Process Temperature (seconds)
30
Circuits (Loaded)
18
Voltage - Maximum
600V
Current - Maximum per Contact
8.5A
Material - Resin
High Temperature Thermoplastic
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
43045-1821
Zoro #
G4033650
UPC #
-
Country of Origin
Mexico

Dimensions

Mated Height
10.06mm
PCB Thickness - Recommended
1.60mm

Details

Duration at Max. Process Temperature (seconds)
30
Circuits (Loaded)
18
Voltage - Maximum
600V
Current - Maximum per Contact
8.5A
Material - Resin
High Temperature Thermoplastic
Pitch - Mating Interface
3.00mm
Polarized to PCB
Yes
Material - Plating Termination
Tin
Number of Rows
2
PCB Retention
Yes
PCB Locator
Yes
Plating min - Mating
0.254µm
Material - Plating Mating
Tin
CSA
LR19980
Circuits (maximum)
18
UL
E29179
Max. Cycles at Max. Process Temperature
3
Color - Resin
Black
Temperature Range - Operating
-40° to +105°C
Glow-Wire Capable
Yes
Durability (mating cycles max)
30
Orientation
Right Angle
Flammability
94V-0
Surface Mount Compatible (SMC)
Yes
Shrouded
Fully
Process Temperature max. C
260
Material - Metal
Brass
Termination Interface: Style
Through Hole
