  11. Microfit 3.0 RA PTH w/clip Tin DR 12 Ckt
This item is Discontinued.

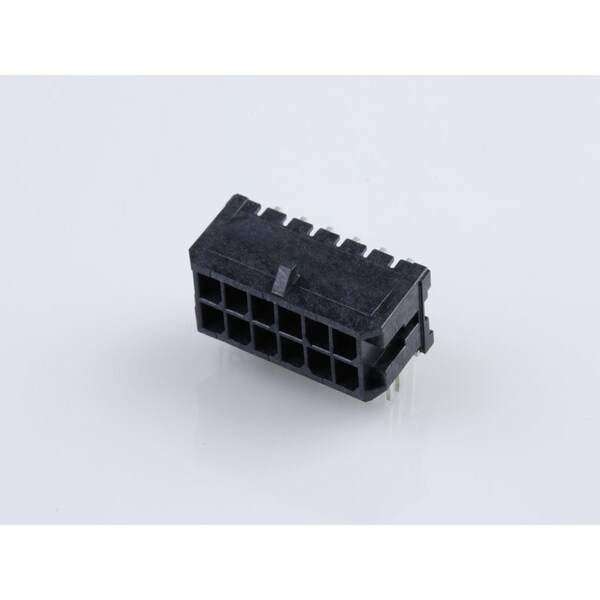

Molex Microfit 3.0 RA PTH w/clip Tin DR 12 Ckt 43045-1221

Microfit 3.0 RA PTH w/clip Tin DR 12 Ckt (Discontinued)

  • Mfr # 43045-1221
  • Zoro # G200415953
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
43045-1221
Zoro #
G200415953
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.60mm
Mated Height
10.06mm

Details

Shrouded
Fully
Material - Resin
High Temperature Thermoplastic
Pitch - Mating Interface
3.00mm
Material - Plating Mating
Tin
Flammability
94V-0
Durability (mating cycles max)
30
Plating min - Mating
0.254µm
Material - Metal
Brass
Termination Interface: Style
Through Hole
PCB Retention
Yes
Glow-Wire Capable
Yes
PCB Locator
Yes
Orientation
Right Angle
Max. Cycles at Max. Process Temperature
3
Color - Resin
Black
Process Temperature max. C
260
Polarized to PCB
Yes
Voltage - Maximum
600V
Surface Mount Compatible (SMC)
Yes
UL
E29179
Temperature Range - Operating
-40° to +105°C
Material - Plating Termination
Tin
Current - Maximum per Contact
8.5A
Circuits (maximum)
12
CSA
LR19980
Circuits (Loaded)
12
Number of Rows
2
Duration at Max. Process Temperature (seconds)
30
