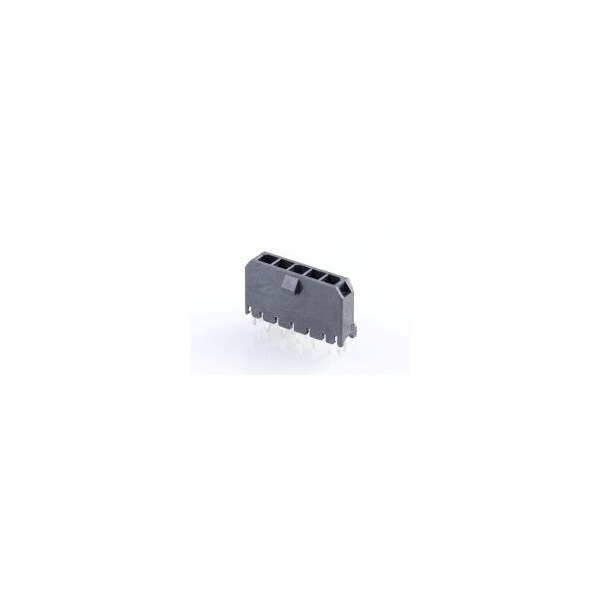

Microfit 3.0 Sr Vert Th Clip 30Au 5Ckt

  • Mfr # 436500520

  • Zoro # G305910902

product price:
$
1.59
/ea
Sold in multiples of 50 for $79.50

Key Features

Color
Black
Number of Rows
1
Series
43650
Max. Voltage
600V
Application
Power, Wire-to-Board
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
436500520
Zoro #
G305910902
UPC #
-
Country of Origin
Mexico
Color
Black
Number of Rows
1
Series
43650
Max. Voltage
600V
Application
Power, Wire-to-Board
Max. Temp.
260°C
Material
High Temperature Thermoplastic
Standards
CSA Certified; UL E29179
Features
Glow-Wire Capable; Surface Mount Compatible
Terminal Type
Through Hole - Kinked Pin
Hole Center to Center
3 mm
Number of Contacts
5
Flammability Rating
UL 94V-0
Terminal Finish
Tin Plated
Current Rating
8.5 A
Contact Finish
Gold Plated
Material - Metal
Brass
Max-Temp
260
Glow-Wire Capable
Yes
Breakaway
No
Current - Maximum per Contact
8.5A
Durability (mating cycles max)
30
Component Type
PCB Header
Material - Resin
High Temperature Thermoplastic
Plating min - Mating
0.762µm
Material - Plating Mating
Gold
Product Name
Micro-Fit 3.0
CSA
LR19980
Orientation
Vertical
Circuits (Loaded)
5
Pitch - Mating Interface
3.00mm
Stackable
No
Shrouded
Fully
Flammability
94V-0
PCB Locator
Yes
Max-Duration
30
Temperature Range - Operating
-40° to +125°C
UL
E29179
Material - Plating Termination
Tin
Max-Cycle
3
PCB Retention
Yes
Polarized to PCB
Yes
