  9. Microfit 3.0 Sr Vert Th Peg 15Au 9Ckt

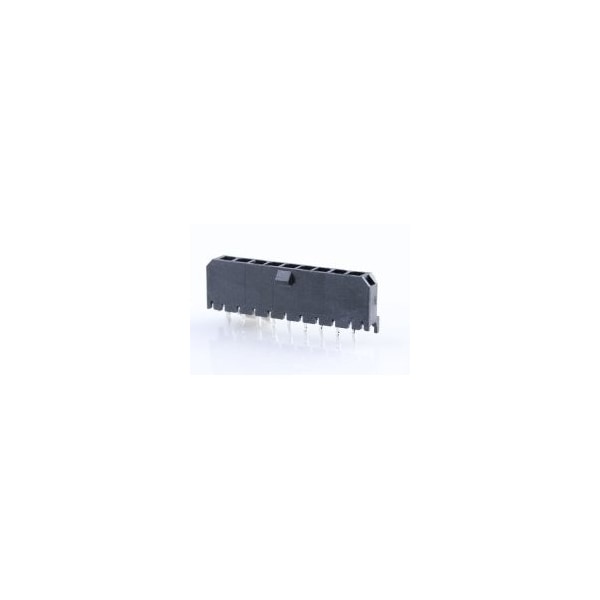

Molex Microfit 3.0 Sr Vert Th Peg 15Au 9Ckt 436500916 - main

Microfit 3.0 Sr Vert Th Peg 15Au 9Ckt

  • Mfr # 436500916

  • Zoro # G605911135

product price: $1.59
/ea
Sold in multiples of 51 for $81.09

Key Features

Color
Black
Number of Rows
1
Series
43650
Max. Voltage
600V
Application
Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
436500916
Zoro #
G605911135
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.381 µm
Mated Height
17.27mm
PCB Thickness - Recommended
1.60mm

Details

Color
Black
Number of Rows
1
Series
43650
Max. Voltage
600V
Application
Power, Wire-to-Board
Features
Glow-Wire Capable; Surface Mount Compatible
Terminal Type
Through Hole - Kinked Pin
Material
High Temperature Thermoplastic
Max. Temp.
260°C
Hole Center to Center
3 mm
Standards
CSA Certified; UL E29179
Contact Finish
Gold Plated
Terminal Finish
Tin Plated
Number of Contacts
9
Current Rating
8.5 A
Flammability Rating
UL 94V-0
Temperature Range - Operating
-40° to +125°C
Durability (mating cycles max)
30
Max-Temp
260
Material - Plating Termination
Tin
Material - Metal
Brass
Glow-Wire Capable
Yes
Plating min - Mating
0.381µm
Shrouded
Fully
CSA
LR19980
Breakaway
No
Polarized to PCB
Yes
PCB Locator
Yes
Material - Resin
High Temperature Thermoplastic
Stackable
No
Orientation
Vertical
Pitch - Mating Interface
3.00mm
Material - Plating Mating
Gold
Circuits (Loaded)
9
Product Name
Micro-Fit 3.0
Flammability
94V-0
Max-Duration
30
UL
E29179
PCB Retention
Yes
Component Type
PCB Header
Max-Cycle
3
Current - Maximum per Contact
8.5A
