  9. Microfit 3.0 Sr Vert Th Peg Tin 4 Ckt

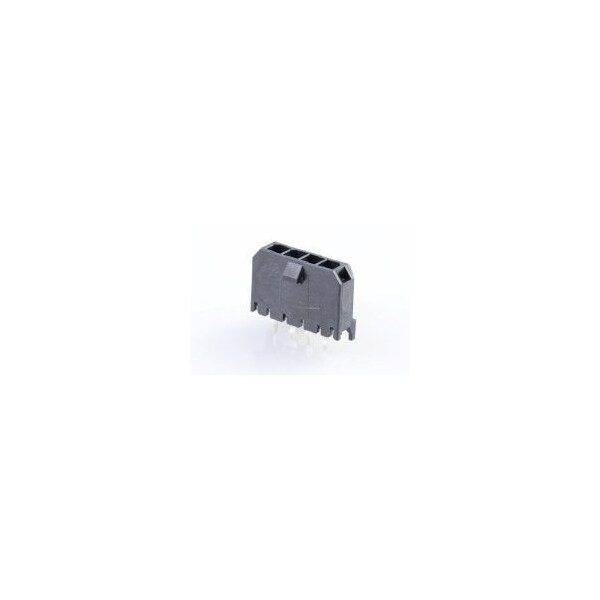

Molex Microfit 3.0 Sr Vert Th Peg Tin 4 Ckt 436500415 - main

Microfit 3.0 Sr Vert Th Peg Tin 4 Ckt

  • Mfr # 436500415

  • Zoro # G305910971

product price: $0.67
/ea
Sold in multiples of 129 for $86.43

Key Features

Color
Black
Number of Rows
1
Series
43650
Max. Voltage
600V
Application
Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
436500415
Zoro #
G305910971
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
2.54 µm
PCB Thickness - Recommended
1.60mm
Mated Height
17.27mm

Details

Color
Black
Number of Rows
1
Series
43650
Max. Voltage
600V
Application
Power, Wire-to-Board
Standards
CSA Certified; UL E29179
Max. Temp.
260°C
Hole Center to Center
3 mm
Terminal Type
Through Hole - Kinked Pin
Features
Glow-Wire Capable; Surface Mount Compatible
Material
High Temperature Thermoplastic
Current Rating
8.5 A
Flammability Rating
UL 94V-0
Number of Contacts
4
Contact Finish
Tin Plated
Terminal Finish
Tin Plated
Breakaway
No
UL
E29179
Shrouded
Fully
Polarized to PCB
Yes
Material - Plating Mating
Tin
Max-Cycle
3
Orientation
Vertical
Pitch - Mating Interface
3.00mm
Plating min - Mating
2.540µm
Stackable
No
Material - Resin
High Temperature Thermoplastic
Material - Plating Termination
Tin
Circuits (Loaded)
4
Max-Temp
260
Product Name
Micro-Fit 3.0
Flammability
94V-0
Temperature Range - Operating
-40° to +105°C
Durability (mating cycles max)
30
Material - Metal
Brass
PCB Retention
Yes
PCB Locator
Yes
CSA
LR19980
Glow-Wire Capable
Yes
Component Type
PCB Header
Max-Duration
30
Current - Maximum per Contact
8.5A
