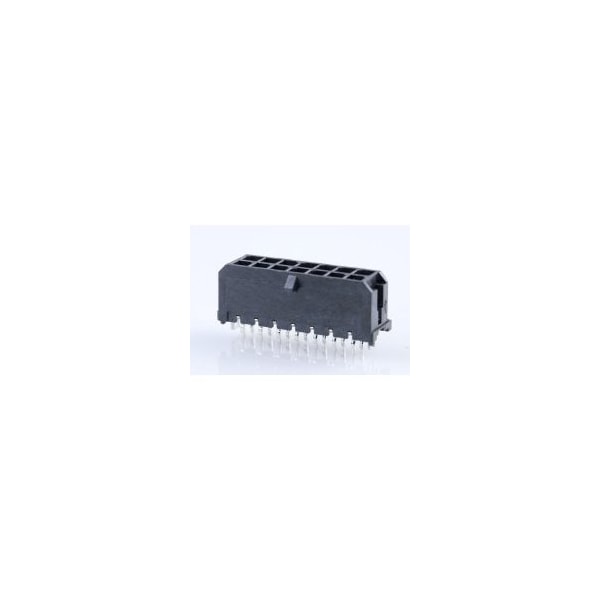

Microfit 3.0 Vert PTH/clip DR 15Au 14Ckt
- Mfr # 43045-1425
- Zoro # G4029694
product price:Â
$
4.35
/ea
Sold in multiples of 25 for
$108.75
Key Features
Color
Black
Number of Rows
2
Insulation Material
High Temperature Thermoplastic
Maximum Voltage
600 V
Current
8.5 A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 43045-1425
- Zoro #
- G4029694
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Contact Plating Thickness
- 0.381 µm
Details
- Item
- Through Hole - Kinked Pin
- Color
- Black
- Number of Rows
- 2
- Insulation Material
- High Temperature Thermoplastic
- Maximum Voltage
- 600 V
- Current
- 8.5 A
- Maximum Operating Temperature
- 260 Degrees C
- UL 94 Flammability Rating
- V-0
- Material
- High Temperature Thermoplastic
- Standards
- CSA Certified; UL E29179
- Max. Temp.
- 260°C
- Features
- Glow-Wire Capable; Surface Mount Compatible
- Hole Center to Center
- 3 mm
- Terminal Type
- Through Hole - Kinked Pin
- Max. Voltage
- 600V
- Current Rating
- 8.5 A
- Contact Finish
- Gold Plated
- Number of Contacts
- 14
- Flammability Rating
- UL 94V-0
- Terminal Finish
- Tin Plated
